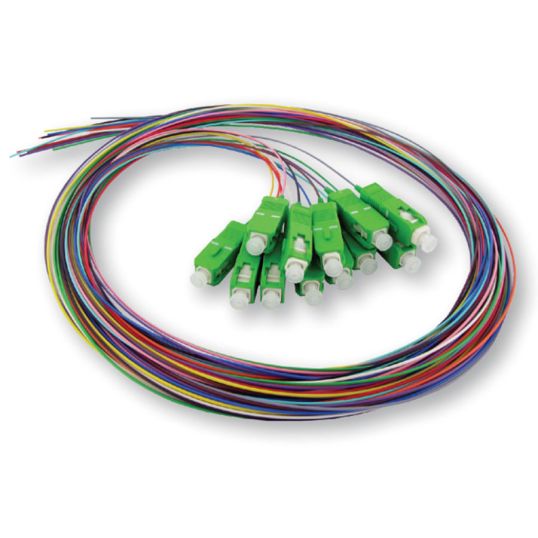

AFL Fibre Optic Pigtail Singlemode OS1/2 SC 9/125?m 12 Fibre LSZH 2m 12 Pack

chevron-left
loader
Loading...

Description

chevron-down
Optic fibre patch cords are used to connect devices in networking systems. They transmit data at high speeds with low signal loss, making them ideal for telecoms and data centres. Available in various lengths and connectors. Fibre optic pigtail assemblies are utilised in terminating fibre optic cables via fusion or mechanical splicing. High-quality pigtails combined with correct fusion splicing practices offer the best performance possible for fibre optic cable terminations. AFL manufactures and distributes a broad range of factory terminated and tested fibre optic pigtail assemblies. These assemblies are available in various fibre types, fibre/cable constructions and connector options. Factory-based assembly and machine connector polishing ensure excellence in performance, intermateability and durability. All pigtails are video inspected and loss tested using standards-based testing procedures.

Key Specifications

chevron-down
SKU
ATAP1SC2MS12A1C900LS
Brand
AFL
Product Type
Pigtails Fibre

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • High-quality, machine polished connectors for consistent low loss performance
  • Flexible and easy to strip buffer
  • Available in various colours for easy identification
Standard Pack Size 1
UNSPSC Class 43223300
UOM EA
Vendor Product P1SC2M-S12A1-C900L-S
Connector A SC
Connector B Pigtail
Cord Length 2 mtr
Fibre Count 12
Fibre Mode Singlemode
Fibre Type OS1/2
Insertion Loss <=0.25 dB
Pack Size 12 Pack
Return Loss >=55 dB
Sheath Material LSZH
Temperature 20 to 60 deg C
