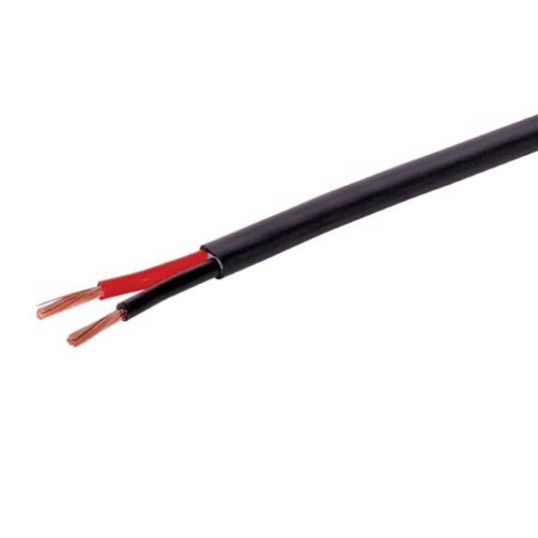

Altronic 1.7mm Flat TPS Cable Underground Figure 8 Heavy Duty 1ea
Loading...
Description
Flat TPS Cable Underground Figure 8 Heavy Duty, 1.7 mm, Bare Copper, 300 Volt AC, 12 Amp, 1 Core, 24/0.30mm Strands, 5 mm x 8 mm Overall Diameter, 0.55 mm Insulation Thickness, 9.3 MOhm/km Insulation Resistance, PVC Insulation, Red/Black Insulation, Polyethylene Sheath, Black Sheath, -20 to 120 deg C, Waterproof Fiber Filled
Key Specifications
| Barcode (EAN-13) |
9321758195338
|
|---|---|
| SKU |
ATRW2023
|
| Brand |
Altronic
|
| Product Type |
Flat TPS Cable U/ground Fig 8 H/Duty
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | EA |
| Vendor Product | W2023 |
| Conductor Size | 1.7 mm |
| Conductor Type | Bare Copper |
| Current | 12 Amp |
| Insulation Colour | Black/Red |
| Insulation Material | PVC |
| Insulation Resistance | 9.3 MOhm/km |
| Insulation Thickness | 0.55 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 5 mm x 8 mm |
| Please Note | Waterproof Fiber Filled |
| Sheath Colour | Black |
| Sheath Material | Polyethylene |
| Stranding | 24/0.30mm |
| Temperature | -20 to 120 deg C |
| Voltage | 300 Volt AC |
