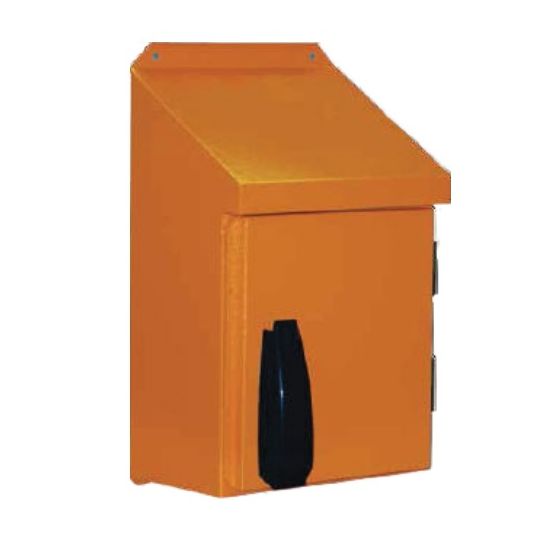

B&R Enclosure Single Door Inclined Roof Heavy Duty X-15 Ripple Orange IP66 316 Stainless Steel 800 Wx220 Dx1000 H mm

chevron-left
loader
Loading...

Description

chevron-down
Enclosure Single Door Inclined Roof General Purpose Heavy Duty Industrial, 1 Door, Surface Mount, IP66, 316 Stainless Steel Housing, 316 Stainless Steel Door, Steel Mounting Plate, FIP Polyurethane Gasket, X-15 Ripple Orange, Powder Coated, 1000 mm Height, 800 mm Width, 220 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
9321228034877
SKU
B&RSP100822/SRO
Brand
B&R
Range Name
Pilbara SP
Product Type
Enclosures

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Pintle hinges
  • Fully enclosed 3-point locking system on most sizes (excluding SP040425)
  • Provision on door for additional mechanical fixings
  • Designed to withstand extreme temperatures -10 deg C to 60 deg C
  • 30 degree sloping roof to prevent build up of water and solids
  • LockSock protective lock cover (IP55)
  • Easy installation with top and bottom mounting flanges
  • 2mm thick mounting pan mounted on ‘C’ rails
Standard Pack Size 1
UNSPSC Class 39121300
UOM EA
Vendor Product SP100822/SRO
Colour X-15 Ripple Orange
Depth 220 mm
Door Material 316 Stainless Steel
Finish Powder Coated
Gasket Material FIP Polyurethane
Height 1000 mm
Housing Material 316 Stainless Steel
IP Rating IP66
Mounting Method Surface
Mounting Plate Material Steel
Number of Doors 1
Width 800 mm
