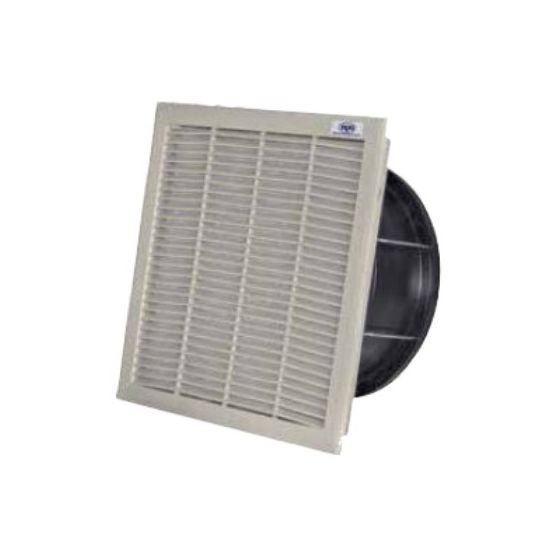

B&R Enclosure Fan Ventilator w/Filter 57 cu-m/hr 230V RAL7032 Pebble Grey 150 Wx67 Dx150 H mm

chevron-left
loader
Loading...

Description

chevron-down
Enclosure Fan Ventilator, Flush Mounting, ABS, RAL7032 Pebble Grey, Powder Coated, -10 to 55 deg C, 150 mm Height, 150 mm Width, 67 mm Depth, 57-61 cu-m/hr 240 Volt

Key Specifications

chevron-down
Barcode (EAN-13)
9321228031111
SKU
B&RTX-FAN12BN0A
Brand
B&R
Range Name
Texa FAN
Product Type
Enclosure Ventilation

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • The fan and filter ventilating units are reversible to pressurise or evacuate air out of the enclosures as required
  • Used together with the FIL filtering grills to expel air from the enclosure
  • Protection rating IP44
  • Protection rating IP54 when used with optional filter
  • Click-in fitting with no screws required
  • Service life exceeds 45000 hrs of service
  • Over current protection is built into the motor
  • All fans are bearing supported and rated for 100 percent duty cycle
Standard Pack Size 1
UNSPSC Class 39121300
UOM EA
Vendor Product TX-FAN12BN0A
Colour Pebble Grey
Depth 67 mm
Finish Powder Coated
Height 150 mm
Mounting Method Flush
Material ABS
Please Note 57-61 cu-m/hr 240 Volt
Temperature -10 to 55 deg C
Width 150 mm
