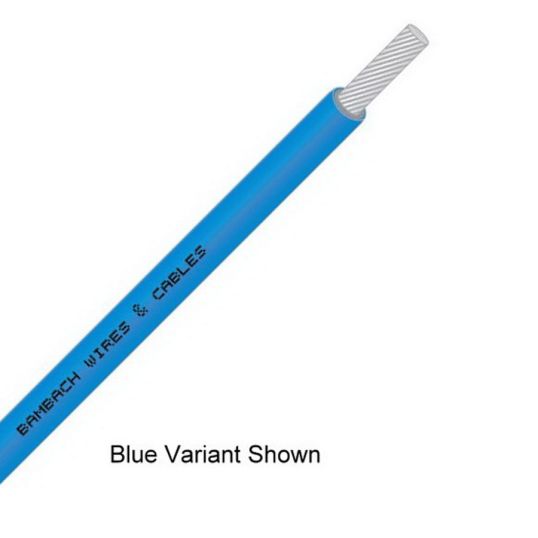

Bambach 0.5mm 1 Core Blue High Temperature Flexible Wire X-HF-110

$Bambach\Bambach_X_HF_110_Flexible.jpg$

Description

Flexible Wire, High Temperature, 0.5 mm, Class 5 or 6 Tinned Annealed Copper, 0.6-1 kV, 10 Amp, 1 Core, 16/0.2 mm Strands, 2.3 mm Overall Diameter, 9.2 mm Bend Radius, X-HF-110 Insulation, Blue Insulation, Unsheathed, -40 to 110 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1

Key Specifications

SKU	BAM26697BE
Brand	Bambach

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Up to 50% higher current ratings compared to PVC flexible cable Reduced overall diameters compared with PVC flexible cable Tinned copper strands for corrosion protection Tinned copper for high conductivity soldered connection Class 5 conductors for extreme flexibility for those awkward to get connections RoHS compliant to European environmental requirements LSZH to reduce hazards during a fire Low Smoke- Reduced smoke emission in a fire situation Low Toxicity- Reduced toxicity in a fire situation Non-Corrosive- No corrosive gas emission in a fire situation
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	26697BE
Bend Radius	9.2 mm
Conductor Type	Class 5 or 6 Tinned Annealed Copper
Conductor Size	0.5 mm
Current	10 Amp
Insulation Colour	Blue
Insulation Material	X-HF-110
Number of Cores	1 Core
Overall Diameter	2.3 mm
Sheath Material	Unsheathed
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1
Temperature	-40 to 110 deg C
Stranding	16/0.2 mm
Voltage	0.6-1 kV
