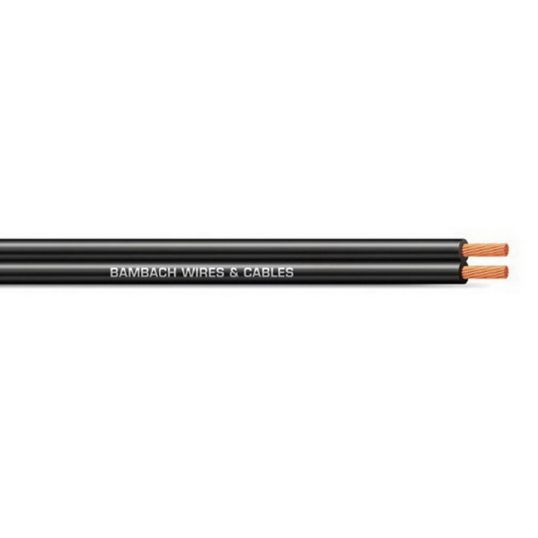

Bambach Garden Lighting Cable 2 Core 3.3mm 32V PVC/PVC Black

$Bambach\Bambach_30000BK.jpg$

Description

Garden Lighting Cable, 3.3 mm, Class 5 Tinned Annealed Copper, 32 Volt, 26 Amp, 2 Core, 46/0.3 mm Strands, 4.7 mm x 9 mm Overall Diameter, V-90HT PVC Insulation, V-90HT PVC Sheath, Black Sheath, -10 to 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 IEC 60228 IEC 60332-1

Key Specifications

SKU	BAM30000BK
Brand	Bambach
Product Type	Garden Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fine conductor stranding for high flexing V90-HT insulation for high ambient temperature applications, long term durability and flexibility RoHS compliant to European environmental requirements Oxygen free copper for high conductivity soldered connections High temperature - V-90-HT PVC insulation suitable for continuous operating at high temperatures Easy to Install - Class 5 flexible conductor stranding for easy installation Extremely Flexible - PVC insulation allows for a small bending radius
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	30000BK
Conductor Size	3.3 mm
Conductor Type	Class 5 Tinned Annealed Copper
Current	26 Amp
Insulation Material	V-90HT PVC
Number of Cores	2 Core
Overall Diameter	4.7 mm x 9 mm
Sheath Colour	Black
Sheath Material	V-90HT PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 IEC 60228 IEC 60332-1
Stranding	46/0.3 mm
Temperature	-10 to 90 deg C
Voltage	32 Volt
