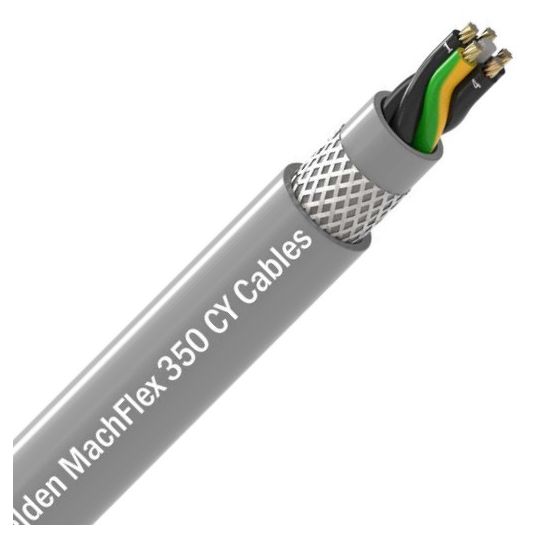

Belden 2.5mm 3 Core + Earth Instrumentation Cable Unarmoured Overall Screened

$Belden\Belden_MachFlex-350-CY.jpg$

Description

Instrumentation Cable, Unarmoured, 2.5 mm, Bare Copper, 0.3-0.5 kV, 3 Core + Earth, Overall Screened Screen, 11.9 mm Overall Diameter, 71.4 mm Static/238 mm Flexible Bend Radius, Tinned Copper Braid Screen, Green/Yellow/Black Numerals Core, PVC Insulation, PVC Sheath, Grey Sheath, Static: -40 to 80 deg C/Flexible: -30 to 70 deg C, DIN VDE 0295 IEC 60228 BS 6360 DIN EN 50290-2-22 RoHS REACH & CE

Key Specifications

SKU	BEL4G2.5CY368500M
Brand	Belden
Range Name	Machflex
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	4G2.5CY 368500M
Voltage	0.3-0.5 kV
Conductor Size	2.5 mm
Conductor Type	Bare Copper
Core Colours	Green/Yellow/Black Numerals
Screen Format	Overall Screened
Sheath Colour	Grey
Overall Diameter	11.9 mm
Temperature	Static -40 to 80 deg C Flexible -30 to 70 deg C
Number of Pairs	3 Core + Earth
Screen Material	Tinned Copper Braid
Bend Radius	Static 71.4 mm/Flexible 238 mm
Insulation Material	PVC
Sheath Material	PVC
Standards	DIN VDE 0295 IEC 60228 BS 6360 DIN EN 50290-2-22 RoHS REACH & CE
