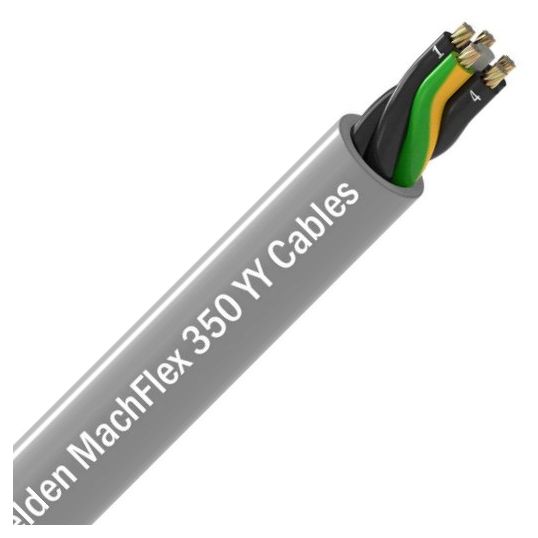

Belden MachFlex 350YY Instrumentation Cable Unarmoured 6 Core & Earth Unscreened 1.5mm 0.3/0.5kV PVC/PVC Grey

$Belden\Belden_MachFlex-350-YY.jpg$

Description

Instrumentation Cable, Unarmoured, 6 Core & Earth, Unscreened, 1.5 mm, Bare Copper, 0.3/0.5 kV, 8.5 mm Overall Diameter, Bend Radius: Static - 34 mm Flexible - 85 mm, PVC Insulation, Flame Retardant Low Smoke PVC Sheath, Black & Numbered Green/Yellow Cores, Grey RAL 7001 Sheath, Static - -40 to 80 deg C Flexible - -30 to 70 deg C, DIN VDE 0295, IEC 60228, BS 6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, EN 50525-2-51, VDE 0281-13, DIN VDE 0482?332?1?2, DIN EN 60332?1?2, RoHS, REACH & CE Directives

Key Specifications

SKU	BEL7G1.5G8U500M
Brand	Belden
Range Name	Machflex
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	7G1.5 G8U500M
Bend Radius	Static 34 mm/Flexible 85 mm
Conductor Size	1.5 mm
Conductor Type	Bare Copper
Core Colours	Green/Yellow/Black Numerals
Insulation Material	PVC
Overall Diameter	8.5 mm
Screen Format	Unscreened
Sheath Colour	Grey
Sheath Material	Flame Retardant PVC
Standards	DIN VDE 0295 IEC 60228 BS 6360 DIN EN 50290-2-22 DIN VDE 0207-363-4-1 IEC 60227-5 EN 50525-2-51 VDE 0281-13 DIN VDE 0482?332?1?2 DIN EN 60332?1?2 RoHS REACH & CE Directives
Temperature	Static: -40 to 80 deg C Flexible: -30 to 70 deg C
Voltage	0.3-0.5 kV
