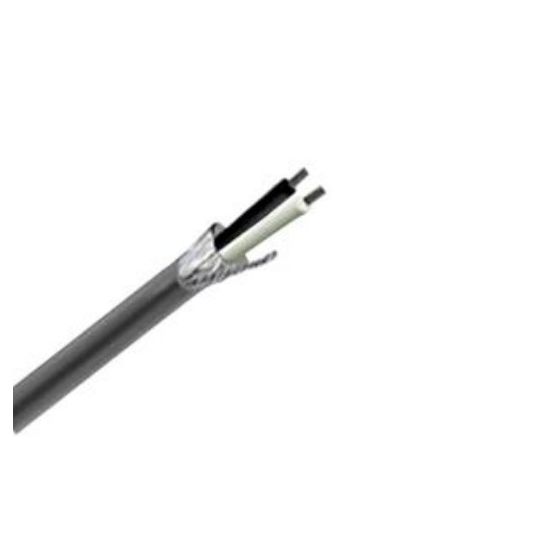

Belden 18 AWG 1 Pair Chrome Data Cable Overall Screened Polyolefin/PVC

Description

Data Cable, 18 AWG, Tinned Annealed Copper, 0.3 kV, 7.2 Amp, 1 Pair, 16x30 Strands, Overall Screened Screen, 5.64 mm Overall Diameter, 56 mm Bend Radius, 0.46 mm Insulation Thickness, 0.71 mm Sheath Thickness, 54.2 lbs Pulling Tension, DC: 21.3265 Ohm/km Conductor Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/Clear Core, Polyolefin Insulation, PVC Sheath, Chrome Sheath, -20 to 60 deg C, UL 1685 UL Loading IEC 60332-1-2

Key Specifications

Barcode (EAN-13)	9318674051107
SKU	BEL87600601000
Brand	Belden
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	8760 0601000
Bend Radius	56 mm
Conductor Resistance	DC: 21.3265 Ohm/km
Conductor Size	18 AWG
Conductor Type	Tinned Annealed Copper
Current	7.2 Amp
Core Colours	Black/Clear
Insulation Material	Polyolefin
Insulation Thickness	0.46 mm
Number of Pairs	1 Pair
Overall Diameter	5.64 mm
Pulling Tension	54.2 lbs
Screen Material	Aluminium/Polyester Tape
Screen Coverage	100%
Sheath Colour	Chrome
Screen Format	Overall Screened
Sheath Material	PVC
Sheath Thickness	0.71 mm
Standards	UL 1685 UL Loading IEC 60332-1-2
Stranding	16x30
Temperature	-20 to 60 deg C
Voltage	0.3 kV
