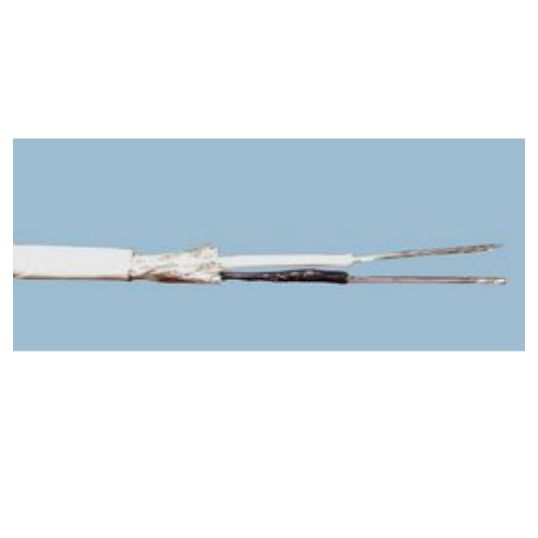

Belden 22 AWG 1 Pair Chrome Data Cable Overall Screened Polyethylene/PVC

$Belden\Belden_BEL8761.jpg$

Description

Data Cable, 22 AWG, Tinned Annealed Copper, 0.3 kV, 2.9 Amp, 1 Pair, 7x30 Strands, Overall Screened Screen, 4.445 mm Overall Diameter, 46 mm Bend Radius, 0.43 mm Insulation Thickness, 0.64 mm Sheath Thickness, 27.3 lbs Pulling Tension, 18.2 Ohm/1000ft Conductor Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/Clear Core, Polyethylene Insulation, PVC Sheath, Chrome Sheath, -20 to 60 deg C, UL 1685 UL Loading IEC 60332-1-2

Key Specifications

Barcode (EAN-13)	9318674021667
SKU	BEL87610601000
Brand	Belden
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	8761 0601000-NLA
Bend Radius	46 mm
Core Colours	Black/Clear
Conductor Resistance	18.2 Ohm/1000ft
Current	2.9 Amp
Conductor Type	Tinned Annealed Copper
Conductor Size	22 AWG
Insulation Material	Polyethylene
Insulation Thickness	0.43 mm
Number of Pairs	1 Pair
Overall Diameter	4.445 mm
Pulling Tension	27.3 lbs
Screen Coverage	100%
Screen Material	Aluminium/Polyester Tape
Screen Format	Overall Screened
Sheath Material	PVC
Sheath Thickness	0.64 mm
Sheath Colour	Chrome
Stranding	7x30
Temperature	-20 to 60 deg C
Standards	UL 1685 UL Loading IEC 60332-1-2
Voltage	0.3 kV
