Belden Instrumentation Cable 24 Pair 1.5mm 110/150V XLPE/Overall Screen/SWA/ LSZH Black
Loading...
Description

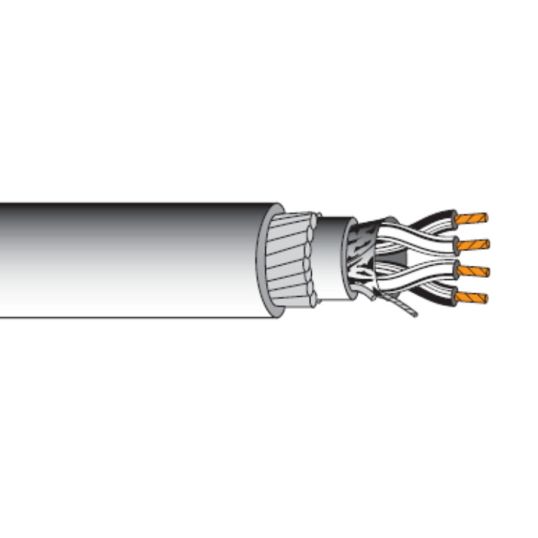

Instrumentation Cable 24 Pair, 1.5mm, 110/150 Volt, 24 Pair, 7/0.5mm Strands, Overall Screen, Steel Wire Armoured Armour, XLPE Insulation, LSZH Sheath, Black Sheath
Key Specifications
| SKU |
BELBOAP15S24LBKB1
|
|---|---|
| Brand |
Belden
|
| Product Type |
Instrumentation Cable Armoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | BOAP15S24L BKB1 |
| Armour Material | Steel Wire |
| Conductor Size | 1.5 mm |
| Insulation Material | XLPE |
| Number of Pairs | 24 Pair |
| Screen Format | Overall Screened |
| Sheath Colour | Black |
| Stranding | 7/0.5 mm |
| Sheath Material | LSZH |
| Voltage | 110-150 Volt |
