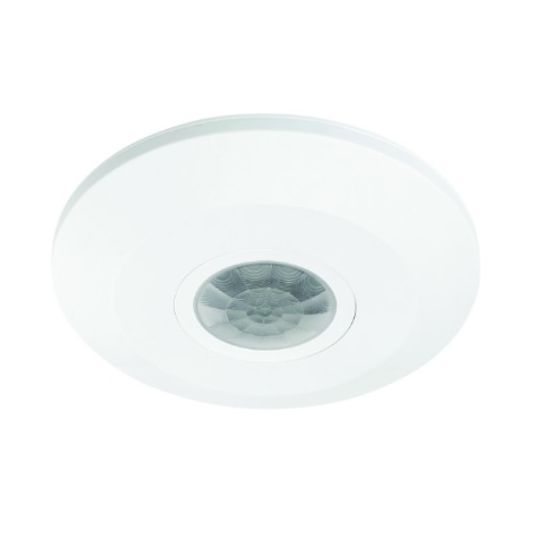

Brilliant Lighting Techno Scan PIR Security Sensor with Remote Ceiling/Flush Mount 360deg IP20 White

chevron-left
loader
Loading...

Description

chevron-down
PIR Security Sensor, Sensing Method: PIR, Sensing Range: 6 mtr, Sensing Beam: 360 deg, Response Time: 10 sec-30 min, 240 Volt, Wattage: Incandescent: 2000 Watt, Fluorescent: 1000 Watt, LED: 500 Watt, Frequency: 50 Hz, Lux: 3-2000 lx (adjustable), 2.2-4 mtr Mounting Height, Mounting Method: Ceiling/Flush, IP20, Material: UV Resistant Polycarbonate, White, Dimensions: 115mm Diameter x 22mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
9312641200499
SKU
BRI20049/05
Brand
Brilliant Lighting
Range Name
Technoscan
Product Type
Sensors

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Passive Infrared technology
  • Multi-segmented lens for better detection
  • Easy control via remote
  • Reliable 4-wire design
  • Adjustable time, lux level and detection range
  • Remote control included
  • Indoor use only
  • Resets to AUTO mode after 8hrs
  • Lux setting
Standard Pack Size 1
UNSPSC Class 32151900
UOM EA
Vendor Product 20049/05
Colour White
Dimensions 115 mm Diameter x 22 mm Depth
Frequency 50 Hz
IP Rating IP20
Lux 3-2000 lx
Mounting Height 2.2-4 mtr
Mounting Method Ceiling/Flush
Material Polycarbonate
Response Time 10 sec - 30 min
Sensing Beam 360 deg
Sensing Range 6 mtr
Sensing Method PIR
Voltage 240 Volt
Wattage Incandescent: 2000 Watt / Fluorescent: 1000 Watt / LED: 500 Watt
