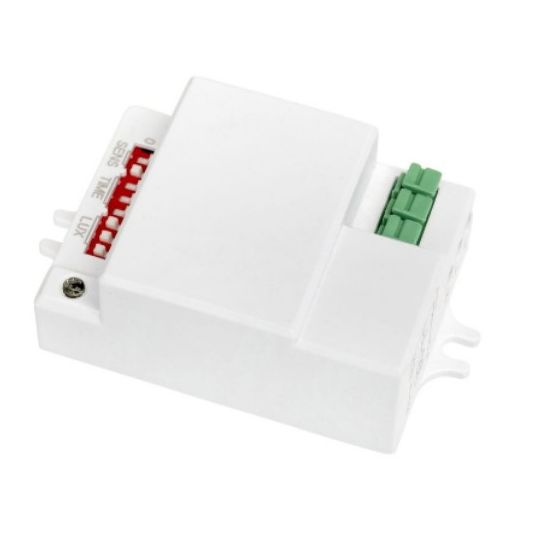

Brilliant Lighting Retro-Fit Microwave Light Sensor Ceiling/Wall Mount 360/180deg IP20 White

Description

Microwave Light Sensor, 240 Volt, Incandescent: 1200 Watt/Fluorescent: 300 Watt/LED: 150 Watt, 50 Hz/5.8 GHz HF System, Wall: 5-15 mtr/Ceiling: 1-8 mtr Radius Sensing Range, Wall: 180 deg/Ceiling: 360 deg Sensing Beam, 5 sec-10 min Response Time, <3-2000 lux, Wall: 1.5-3.5 mtr/Ceiling: 2-6 mtr Mounting Height, IP20, Ceiling/Wall Mounting, Polycarbonate, White, 40 mm Width x 68 mm Height

Key Specifications

Barcode (EAN-13)	9312641200529
SKU	BRI20052/05
Brand	Brilliant Lighting
Range Name	Smart
Product Type	Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Automatically activated by motion and light level Compact size to retro-fit into most ceiling and wall lights Wide detection area Motion can be detected through plastic, glass and thin non-metal materials Accurate adjustable time, lux level and detection area via DIP switches Reliable 3-wire design
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	20052/05
Colour	White
Dimensions	40 mm Width x 68 mm Height
Frequency	50 Hz/5.8 GHz HF System
IP Rating	IP20
Lux	<3-2000 lux
Mounting Height	Wall: 1.5-3.5 mtr/Ceiling: 2-6 mtr
Mounting Method	Ceiling/Wall
Material	Polycarbonate
Response Time	5 sec - 10 min
Sensing Beam	Wall: 180 deg / Ceiling: 360 deg
Sensing Range	Wall: 5-15 mtr / Ceiling: 1-8 mtr Radius
Voltage	240 Volt
Wattage	Incandescent: 1200 Watt / Fluorescent: 300 Watt / LED: 150 Watt
