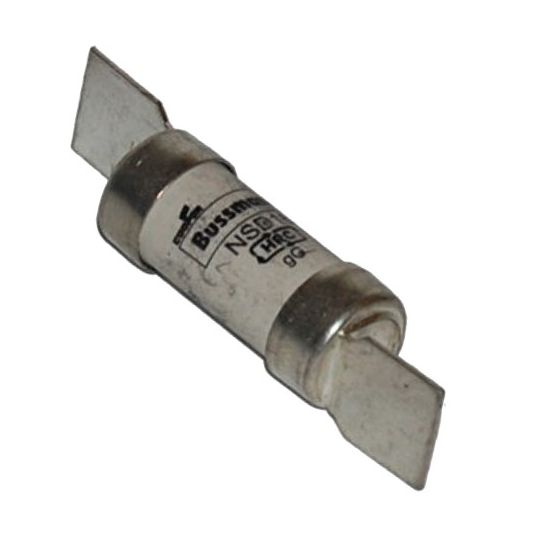

Bussmann Fuse Link HRC Clip In Offset Motor Rated 63M80 Amp 415VAC 80 kA Class gM BS88 Type F2
Loading...
Description
Fuse Link HRC Clip In Offset, 415 VAC, 63M80 Amp, Class gM, Interrupt Capacity: 80 kA, Clip In Offset Motor Rated Tag, 21mm Diameter x 68mm Length, BS88 Type F2
Key Specifications
| SKU |
BUSESD63M80
|
|---|---|
| Brand |
Bussmann
|
| Product Type |
Fuse Links HRC Clip In
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 20 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | ESD63M80 |
| Dimensions | 21mm Diameter x 68mm Length |
| Current | 80 Amp |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type F2 |
| Tag Type | Clip In Offset Motor Rated |
| Utilisation Category | Class gM |
| Voltage | 415 Volt AC |
