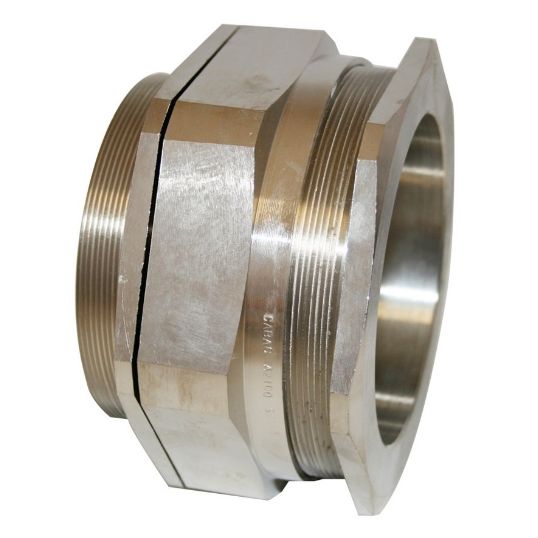

Cabac Metal Cable Gland Unarmoured General Purpose M40 22-32.1mm Nickel Plated Brass IP66

Description

The CABAC A2 range of glands are ideal for general purpose use with unarmoured PVC and XLPE sheathed cables. These glands are rated IP66, meaning they are dust tight and weather resistant. The product features a nickel-plated brass body which protects against the threat of corrosion and a neoprene seal that clamps onto the sheath of the cable. O-ring and locknut included.

Key Specifications

Barcode (EAN-13)	9318674625858
SKU	CAAA2-40
Brand	Cabac
Range Name	Type A2
Product Type	Cable Glands Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose cable gland designed for terminating unarmoured PVC and XLPE sheathed cables Nickel plated brass body offers superior corrosion resistance Rated IP66, ensuring dust-tight and weatherproof protection; operates in temperatures from -20 deg C to +130 deg C Neoprene seal clamps onto the cable sheath for a secure fit O-ring and locknut included for enhanced sealing and secure installation
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	A2-40
For Use With	Unarmoured Cables
Finish	Nickel Plated
IP Rating	IP66
Body Material	Brass
Max. Sheath OD	32.1 mm
Min. Sheath OD	22 mm
Thread Length	15 mm
Seal Material	Neoprene
Width Across Corners	55.3 mm
Thread Size	M40
