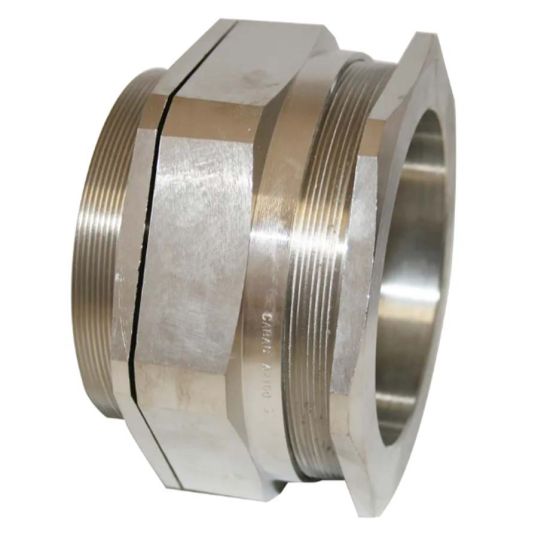

Cabac Metal Gland 75mm Cable 60.5-67mm Brass Nickel Plated IP66

$Cabac\Cabac_A2-75.jpg$

Description

Cable Gland Metal Unarmoured, 75 mm, 15 mm Thread Length, 60.5 mm Min. Sheath OD, 67 mm Max. Sheath OD, For Use With Unarmoured PVC and XLPE Sheathed Cables, 94 mm Width Across Corners, IP66, Brass Body, Neoprene Seal, Nickel Plated

Key Specifications

Barcode (EAN-13)	9318674808442
SKU	CAAA2-75
Brand	Cabac
Product Type	Cable Glands Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose cable gland designed for terminating unarmoured PVC and XLPE sheathed cables. Nickel plated brass body offers superior corrosion resistance. Rated IP66, ensuring dust-tight and weatherproof protection; operates in temperatures from -20 deg C to +130 deg C Neoprene seal clamps onto the cable sheath for a secure fit O-ring and locknut included for enhanced sealing and secure installation
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	A2-75
Body Material	Brass
Finish	Nickel Plated
For Use With	Unarmoured PVC and XLPE Sheathed Cables
IP Rating	IP66
Max. Sheath OD	67 mm
Min. Sheath OD	60.5 mm
Seal Material	Neoprene
Thread Length	15 mm
Thread Size	75 mm
Width Across Corners	94 mm
