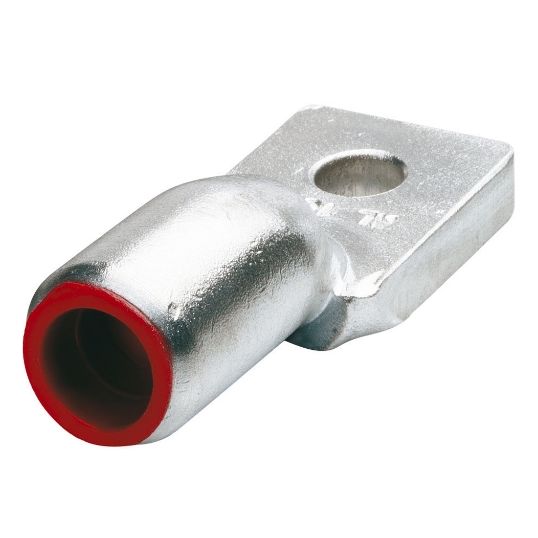

Cabac Crimp Lug Standard Aluminium 500mm Blank Palm Aluminium Pre-Filled 160mm OAL

Description

Crimp Lug, Standard, Aluminium, 500 mm Conductor, Blank Palm For Custom Drilling, Standard Barrel, Barrel Length: 70 mm, 160 mm Overall Length, Forged Aluminium Body, Conductive Material: Aluminium Pre-Filled With Jointing Compound, Tin Electroplated Finish, -20 to 140 deg C, Number of Strands: 61/3.2, Inside Diameter: 30 mm, 54 mm Lug Length, 54 mm Lug Width, 15 mm Lug Thickness, A/F Hex Die: 39 mm, Crimping Die: ECW-3D4/500AL, Tensile Strength: 110 MPa

Key Specifications

Barcode (EAN-13)	9318674502159
SKU	CAAAL500
Brand	Cabac
Range Name	Standard Lugs Aluminium
Product Type	Lugs Standard Aluminium

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Forged aluminium lug with funnel entry design - stranded sector cables insert easily into barrel which can then be orientated in any direction Chemically treated to reduce contact resistance Crimp with standard hexagonal dies - from palm outwards
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	AL500
A-F Hex Die	39 mm
Barrel Length	70 mm
Barrel Type	Standard
Body Material	Forged Aluminium
Conductive Material	Aluminium Pre-Filled With Jointing Compound
Conductor Size	500 mm
Crimping Die	ECW-3D4/500AL
Finish	Tin Electroplated
Inside Diameter	30 mm
Lug Length	54 mm
Lug Thickness	15 mm
Lug Width	54 mm
Number of Strands	61/3.2
Overall Length	160 mm
Stud Size	Blank Palm For Custom Drill inchg
Temperature	-20 to 140 deg C
Tensile Strength	110 MPa
