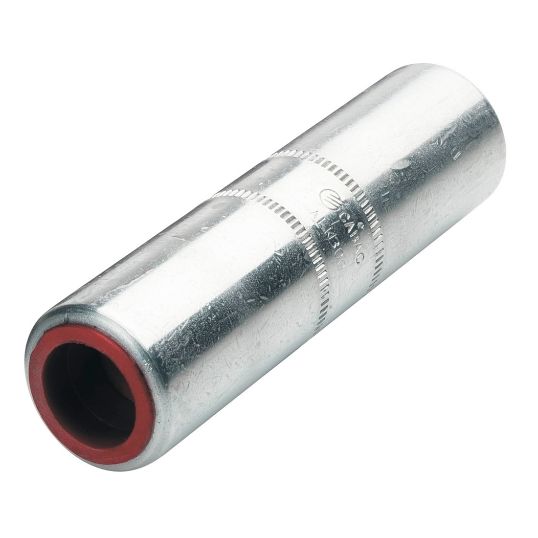

Cabac Crimp Link with Internal Barrier Aluminium 800mm 235mm OAL

Description

Crimp Link with Internal Barrier, Aluminium, 800 mm Conductor, 39mm Inside Diameter, 235 mm Overall Length,110 MPa, Ductile Rating: 28%, Resistivity: 2.6 ?Ohm cm Maximum, Conductivity: 61.8% IACS Minimum, A/F Hex Die: 43.2 mm, Crimping Die: RHU520-800, 4 Crimps, Annealed Electrical Aluminium Body, Aluminium Conductor, -20 to 140 deg C, with Internal Barrier

Key Specifications

Barcode (EAN-13)	9318674540823
SKU	CAAALK800
Brand	Cabac
Range Name	Barrier Links Aluminium
Product Type	Links With Barrier

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Manufactured from solid drawn aluminium rod - minimising casting imperfections in the metal Barrier design facilitates ingress of jointing compound in joint Crimp from centre mark outwards - clearly marked crimping lines Crimp with standard Australian/NZ hex dies For stranded sector and circular stranded aluminium conductor
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALK800
A-F Hex Die	43.2 mm
Body Material	Annealed Aluminium
Conductive Material	Aluminium
Conductivity	61.8% IACS Minimum
Conductor Size	800 mm
Crimping Die	RHU520-800
Ductile Rating	28%
Inside Diameter	39 mm
Number of Crimps	4
Overall Length	235 mm
Resistivity	2.6 Ohm/cm Maximum
Temperature	-20 to 140 deg C
Tensile Strength	110 MPa
