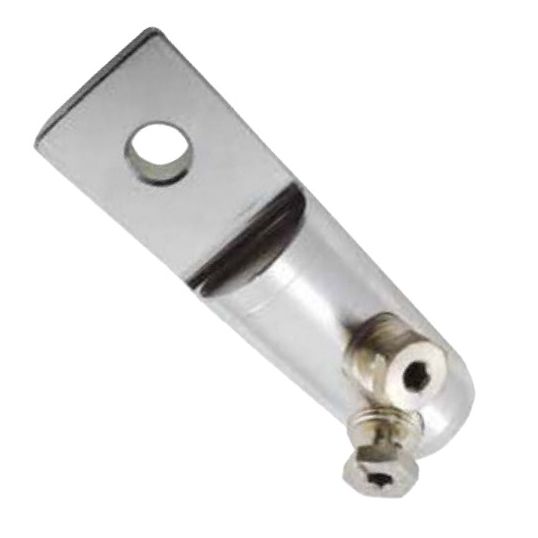

Cabac Bolted Lug with Shear Head Bolts Aluminium 240mm M12 Stud

Description

Bolted Lug with Shear Head Bolts, Aluminium, 240 mm Conductor, M12 Stud, Conductor Bolt Diameter: 20 mm, 20 MPa, Aluminium Body, Aluminium Conductor, Brass Alloy Screw, Tin Plated Finish, -20 to 140 deg C, with Shear Head Bolts

Key Specifications

Barcode (EAN-13)	9318674716891
SKU	CAABAL240-12
Brand	Cabac
Range Name	Bolted Lugs & Links
Product Type	Lugs Bolted

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For low voltage applications up to 1000 Volts For solid and stranded, sector or circular conductor, aluminium or copper cables Simple bolt design using shear bolt technology Performs better than crimped joints - grooved inner surface of lug barrel Chamfered to eliminate sharp corners Uses a standard A/F 28.4 hex crimp die (HT-240/300AL) Installation of connector requires only an Allen key
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BAL240-12
Conductive Material	Aluminium
Body Material	Aluminium
Conductor Size	240 mm
Finish	Tin Plated
Temperature	-20 to 140 deg C
Stud Size	M12 Stud
