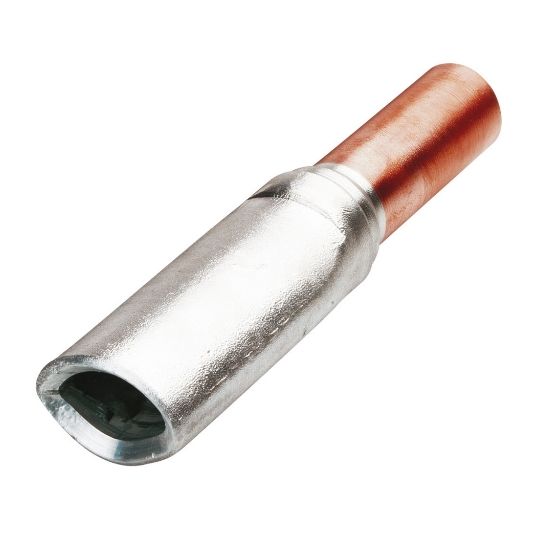

Cabac Crimp Link 4 Core Sector Bi-Metal 120mm Circular 70mm 106mm OAL

Description

Crimp Link, 4 Core Sector, Bi-Metal, 120 mm Circular Aluminium Conductor, 70 mm Copper Conductor, 110 MPa, Ductile Rating: 28%, Resistivity: 2.6 µOhm cm Maximum Aluminium/1.738 µOhm cm Copper, Conductivity: 61.8% IACS Minimum Aluminium/99.7% IACS Copper, Copper A/F Hex Die: 11.5 mm, Aluminium Crimping Die: A14 Nest, A16 Indent, Copper Crimping Die: HT130-C-70, 3 Aluminium Crimps/1 Copper Crimp, Annealed Bi-Metal Body, Aluminium Sleeve/Copper Palm Conductor, -40 to 125 deg C, Aluminium Inside Diameter: 17.1 mm W x 12.2 mm H, Copper Inside Diameter: 11.5 mm, 106 mm Overall Length

Key Specifications

Barcode (EAN-13)	9318674603160
SKU	CAABLKS120/4/70
Brand	Cabac
Range Name	Sector Links
Product Type	Links For Sector Cables

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Manufactured using friction welding process producing a very strong electrically sound joint, which will not be subject to electrolysis Link solid/standard sector aluminium cable to circular copper cable Crimp with V shaped nest die and 13 tonne or larger indentor tool Conforms to Australian and many international standards
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLKS120/4/70
A-F Hex Die	11.5 mm
Aluminium Crimping Die	A14 Nest/A16 Indent
Aluminium Number of Crimps	3
Aluminium Inside Diameter	17.1 mm W x 12.2 mm H
Aluminium Conductor Size	120 mm
Conductive Material	Aluminium Sleeve/Copper Palm
Conductivity	61.8% IACS Minimum Aluminium/99.7% IACS Copper
Body Material	Annealed Bi-Metal
Copper Number of Crimps	1
Ductile Rating	28%
Copper Crimping Die	HT130-C-70
Copper Inside Diameter	11.5 mm
Copper Conductor Size	70 mm
Overall Length	106 mm
Temperature	-40 to 125 deg C
Resistivity	2.6 µOhm cm Maximum Aluminium/1.738 µOhm cm Copper
Tensile Strength	110 MPa
