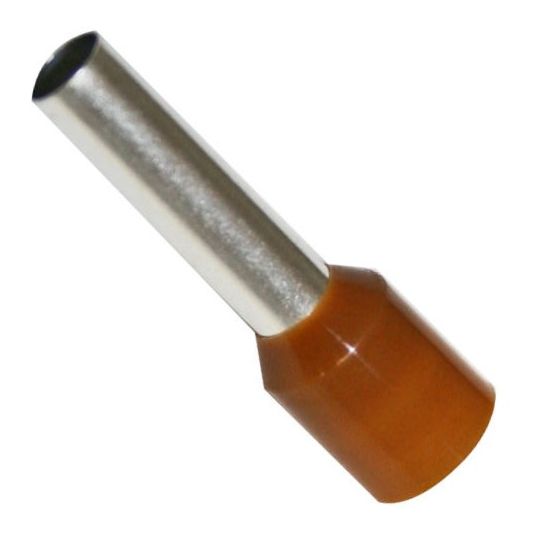

Cabac Bootlace Ferrule Insulated 10mm 4.9x18mm Pin 28mm OAL Brown

$Cabac\Cabac_BLP1000_18.jpg$

Description

Insulated Bootlace Ferrule, 10 mm, 1 Conductors, 18 mm Pin Length, 4.9 mm Pin Diameter, 8.4 mm Collar Inside Diameter, HNKE, 28 mm Overall Length, Copper Sleeve, Nylon Insulation, Brown Insulation, Copper Contact, Tin Electroplated, -55 to 105 deg C, 25 Pack

Key Specifications

Barcode (EAN-13)	9318674622673
SKU	CAABLP1000-18
Brand	Cabac
Range Name	Pre-Insulated Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Used to terminate conductors by containing the strands in a thin walled Copper sleeve that is crimped onto the conductor Sleeve ensures no stray conductor strands or breaks from screw Crimp holds on sleeve until housing screw makes connection Crimp with one of our HNKE range of crimp tools Halogen free
Standard Pack Size	25
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLP1000-18
Collar Inside Diameter	8.4 mm
Conductor Size	10 mm
Contact Material	Copper
Crimping Die	HNKE
Finish	Tin Electroplated
Insulation Material	Nylon
Insulation Colour	Brown
Number of Conductors	1
Overall Length	28 mm
Pack Size	25 Pack
Pin Diameter	4.9 mm
Pin Length	18 mm
Sleeve Material	Copper
Temperature	-55 to 105 deg C
