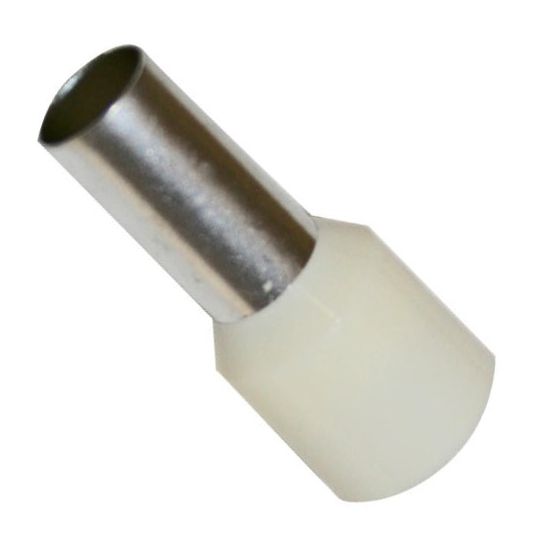

Cabac Bootlace Ferrule Insulated 16mm 6.2x12mm Pin 24mm OAL Ivory

$Cabac\Cabac_BLP1600.jpg$

Description

Insulated Bootlace Ferrule, 16 mm, 1 Conductors, 12 mm Pin Length, 6.2 mm Pin Diameter, 9.6 mm Collar Inside Diameter, HNKE, 24 mm Overall Length, Copper Sleeve, Nylon Insulation, Ivory Insulation, Copper Contact, Tin Plated, -55 to 105 deg C, 25 Pack

Key Specifications

Barcode (EAN-13)	9318674507611
SKU	CAABLP1600
Brand	Cabac
Range Name	Pre-Insulated Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Used to terminate conductors by containing the strands in a thin walled Copper sleeve that is crimped onto the conductor Sleeve ensures no stray conductor strands or breaks from screw Crimp holds on sleeve until housing screw makes connection Crimp with one of our HNKE range of crimp tools Halogen free
Standard Pack Size	25
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLP1600
Collar Inside Diameter	9.6 mm
Crimping Die	HNKE
Conductor Size	16 mm
Contact Material	Copper
Finish	Tin Plated
Insulation Colour	Ivory
Insulation Material	Nylon
Number of Conductors	1
Pack Size	25 Pack
Overall Length	24 mm
Pin Diameter	6.2 mm
Pin Length	12 mm
Sleeve Material	Copper
Temperature	-55 to 105 deg C
