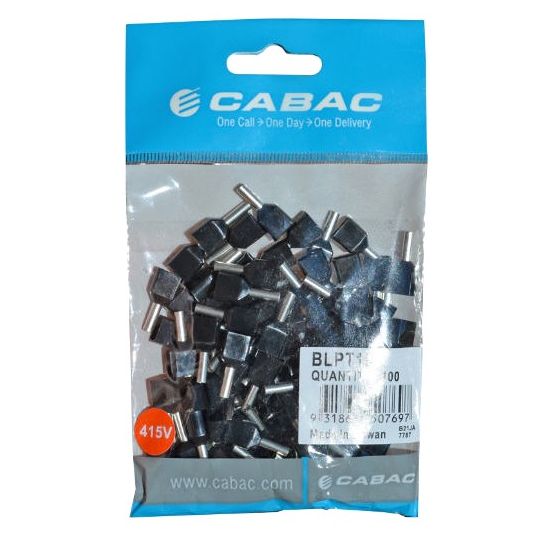

Cabac Bootlace Ferrule Insulated Twin Wire 2x1.5mm 2.3x8mm Pin Black 16mm OAL

$Cabac\Cabac_BLPT150.jpg$

Description

Twin Wire Bootlace Ferrule Insulated, 1.5 mm, 2 Conductors, 8 mm Pin Length, 2.3 mm Pin Diameter, 6.6 mm Collar Inside Diameter, HNKE6, 16 mm Overall Length, Copper Sleeve, Black Insulation, Copper Contact, Tin Plated, 100 Pack

Key Specifications

Barcode (EAN-13)	9318674507697
SKU	CAABLPT150
Brand	Cabac
Range Name	Pre-Insulated Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Specifically designed to terminate two wires in the same terminal A quick and easy way to terminate two wires Developed for use in smaller switches and devices Halogen free
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLPT150
Collar Inside Diameter	6.6 mm
Crimping Die	HNKE6
Conductor Size	1.5 mm
Contact Material	Copper
Finish	Tin Plated
Insulation Colour	Black
Number of Conductors	2
Pack Size	100 Pack
Overall Length	16 mm
Pin Diameter	2.3 mm
Pin Length	8 mm
Sleeve Material	Copper
