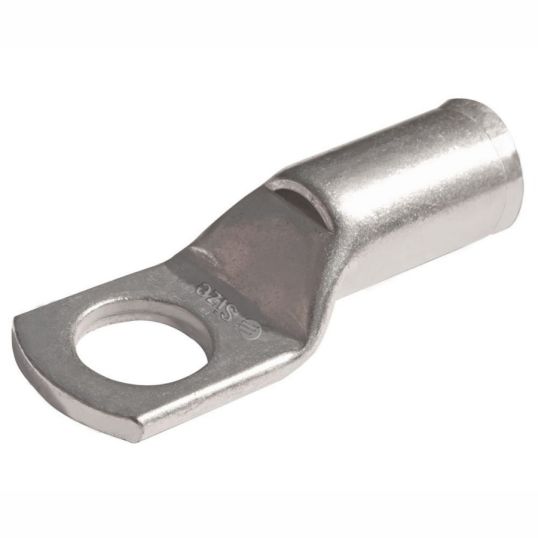

Cabac Crimp Lug Bell Mouth Copper 500mm M12 Stud 128mm OAL

$Cabac\Cabac_CAL500-12BM.jpg$

Description

Designed to accommodate fine stranded flexible cable which tends to splay out after stripping. The special bell mouth funnel makes conductor insertion easy. At the top end of the cable diameter range (around 150 to 240 sq-mm ) some manufacturers cables will not fit into the nominal lug.

Key Specifications

Barcode (EAN-13)	9318674884620
SKU	CAACAL500-12BM
Brand	Cabac

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Made from high conductivity annealed copper Crimped with CABAC and MSS Power standard tooling and copper dies Suitable for fine strand conductors Bellmouth makes insertion easier
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CAL500-12BM
A-F Hex Die	31 mm
Barrel Length	50 mm
Body Material	Annealed Copper
Conductive Material	Annealed Copper
Conductor Size	500 mm
Crimping Die	ECW-H3D-500
Finish	Tin Electroplated
Inside Diameter	31.5 mm
Lug Length	56 mm
Lug Thickness	7.5 mm
Lug Width	56 mm
Number of Crimps	2
Number of Holes	1 Hole
Overall Length	128 mm
Stud Size	M12
Temperature	-55 to 155 deg C
Tensile Strength	200 MPa
