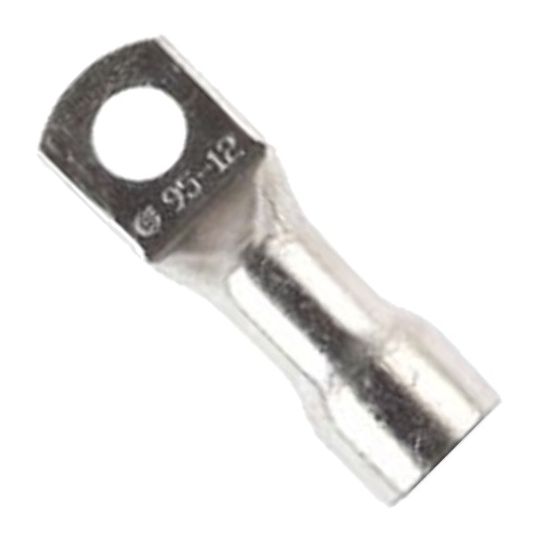

Cabac Crimp Lug Bell Mouth Double Grip Copper 95mm M12 Stud 76mm OAL

$Cabac\Cabac_CAL95_12DG.jpg$

Description

Crimp Lug, Bell Mouth, Double Grip, Copper, 95 mm Conductor, M12 Stud, Flared Barrel, 38mm Barrel, 13.5 mm Flare, 76mm Overall Length, 1 Hole, Annealed Copper Body, Annealed Copper Conductor, Tin Electroplated Finish, -55 to 155 deg C, 13.4mm Inside Diameter Barrel, 18.9mm Flare, 25mm Lug Width, 3.9mm Lug Thickness, 28mm Lug Length, 14.2mm A/F Hex Die Barrel, 18.3/150Cu Flare, 1 Crimp, 200 MPa

Key Specifications

Barcode (EAN-13)	9318674626251
SKU	CAACAL95-12DG
Brand	Cabac
Range Name	Double Grip Lugs
Product Type	Lugs Double Grip

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Made from high conductivity 99.9% pure annealed copper Crimped with CABAC and MSS Power standard recommended dies Suitable for high vibration applications Flared barrel crimped onto conductor insulation
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CAL95-12DG
A-F Hex Die	14.2 mm Barrel/18.3 150Cu Flare
Barrel Length	38 mm Barrel 13.5 mm Flare
Barrel Type	Flared
Body Material	Annealed Copper
Conductive Material	Annealed Copper
Conductor Size	95 mm
Finish	Tin Electroplated
Inside Diameter	13.4 mm Barrel/18.9 mm Flare
Lug Length	28 mm
Lug Thickness	3.9 mm
Lug Width	25 mm
Number of Crimps	1
Number of Holes	1 Hole
Overall Length	76 mm
Stud Size	M12 Stud
Temperature	-55 to 155 deg C
Tensile Strength	200 MPa
