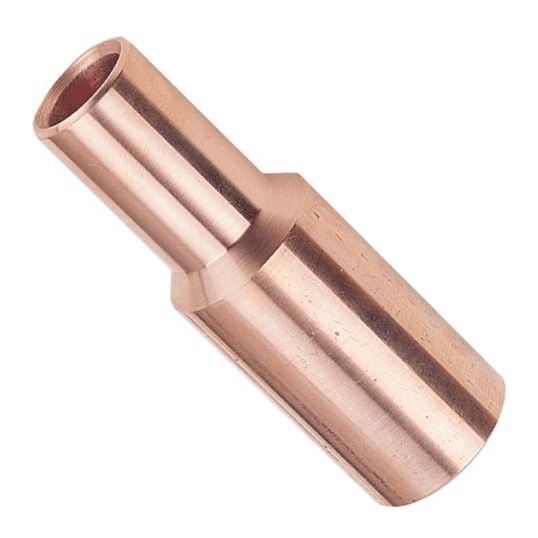

Cabac Crimp Link Reducing Copper 25mm 6mm 40mm OAL

Description

The CABAC copper reducing link range are a barrier type, so they can be used in any situation where an impermeable barrier to oils or water is required.

Key Specifications

Barcode (EAN-13)	9318674513957
SKU	CAACASR25/6
Brand	Cabac
Range Name	Reducing Links Copper
Product Type	Links Reducing Type

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Suitable for circular and sector stranded copper conductors Application: reducing joints, fly leads, tails, etc Impermeable barrier for oils and water Crimped with CABAC and MSS Power standard tooling and copper dies Crimp with standard Australian/NZ hex dies Note: Do not crimp close to the centre barrier or the links may shear
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CASR25/6
Body Material	Annealed Copper
Conductive Material	Copper
Conductivity	99.7% IACS
Ductile Rating	40%
From A-F Hex Die	7.7 mm
From Conductor Size	25 mm
From Crimping Die	HT130-C-25
From Number of Crimps	1
From Inside Diameter	7.1 mm
Overall Length	40 mm
Resistivity	1.738 micro-Ohm/cm
Temperature	-55 to 155 deg C
To Crimping Die	K26
To Conductor Size	6 mm
Tensile Strength	200 MPa
To A-F Hex Die	4.4 mm
To Inside Diameter	4 mm
To Number of Crimps	1
