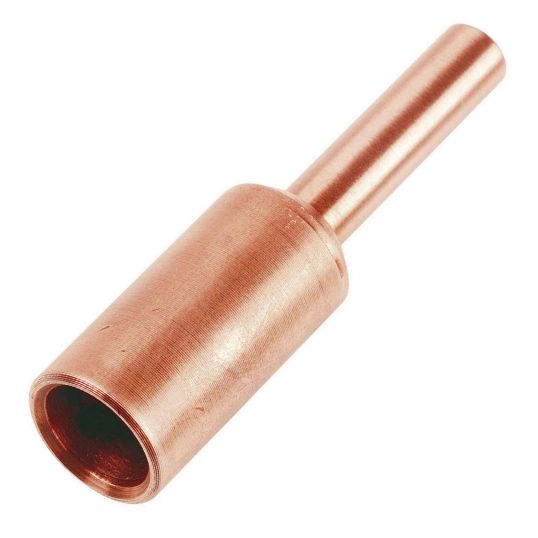

Cabac Crimp Lug Stalk Type B Copper 120mm M10 Stud 40mm L Stalk 82mm OAL

Description

Crimp Lug, Stalk Type B Copper, 120 mm Conductor, 15.5mm Inside Diameter, M10 Stalk, 40mm Stalk Length, 82 mm Length, 30mm Barrel, 200 MPa, Ductile Rating: 40%, Resistivity: 1.738 µOhm cm, Conductivity: 99.7% IACS, Annealed Copper Body, Annealed Copper Conductor, -55 to 155 deg C, A/F Hex Die: 16.5 mm, Crimping Die: HT130-C-120, 1 Crimp Round, 2 Compact

Key Specifications

Barcode (EAN-13)	9318674516279
SKU	CAACS120/10
Brand	Cabac
Range Name	Stalk Lugs
Product Type	Crimp Lug Stalk Type

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Stalk lugs are generally used to attach cable terminations to a copper overhead conductor Suitable for electrical equipment with clamp terminals Crimped with CABAC and MSS Power standard tooling and copper dies
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CS120/10
A-F Hex Die	16.5 mm
Barrel Length	30 mm
Body Material	Annealed Copper
Conductive Material	Annealed Copper
Conductor Size	120 mm
Conductivity	99.7% IACS
Crimping Die	HT130-C-120
Ductile Rating	40%
Inside Diameter	15.5 mm
Number of Crimps	1 Round/2 Compact
Overall Length	82 mm
Resistivity	1.738 µOhm/cm
Stalk Diameter	M10 Stalk
Stalk Length	40 mm
Temperature	-55 to 155 deg C
Tensile Strength	200 MPa
