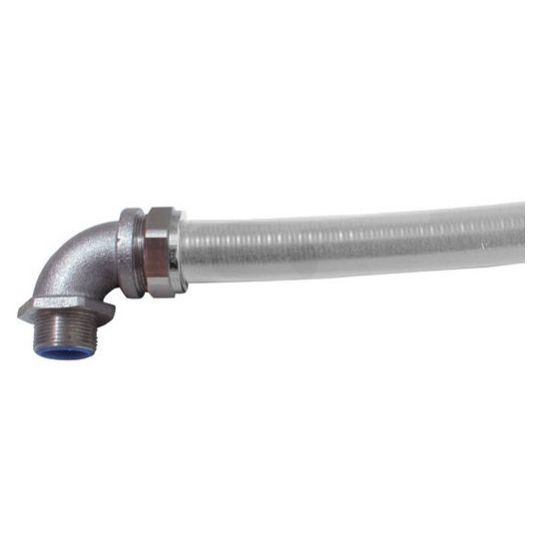

Cabflx Flexible Conduit Metal Liquid Tight Heavy Duty 32mm 25M 304 Stainless Steel/PVC Black

chevron-left
loader
Loading...

Description

chevron-down
Flexible Conduit, Metal, Liquid Tight, Heavy Duty, 32 mm, 26.7 mm ID, 33.1 mm OD, 25 mtr, 120 mm Bend Radius, IP66, 304 Stainless Steel, PVC Sheath, Black Sheath, -10 to 105 deg C

Key Specifications

chevron-down
Barcode (EAN-13)
9318674265948
SKU
CAACSS32BK
Brand
Cabflx
Product Type
Flex Conduit Liquid Tight

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • The CABFLX CSS range of flexible stainless-steel conduit provides excellent cable protection and offers additional peace of mind in areas where corrosion is a concern
  • Like our other high-quality flexible metallic conduits, the CSS range is designed to deliver an advanced level of mechanical and environmental protection for installations where flexibility is essential
  • Due to its corrosion resistance, stainless steel is a preferred material for use in harsh environments, including the difficult conditions present in coastal or marine applications
  • The addition of a durable, UV stabilised PVC jacket creates a liquid tight conduit that is non-flame propagating and resistant to most oils, acids and vapours
  • This combination of excellent mechanical strength, superior corrosion resistance and UV protection makes CABFLX CSS conduit suitable for many indoor or outdoor cable installation projects
Standard Pack Size 1
UNSPSC Class 39131700
UOM RO
Vendor Product CSS32BK
Bend Radius 120 mm
Conduit Size 32 mm
IP Rating IP66
Inside Diameter 26.7 mm
Sheath Colour Black
Outside Diameter 33.1 mm
Temperature -10 to 105 deg C
