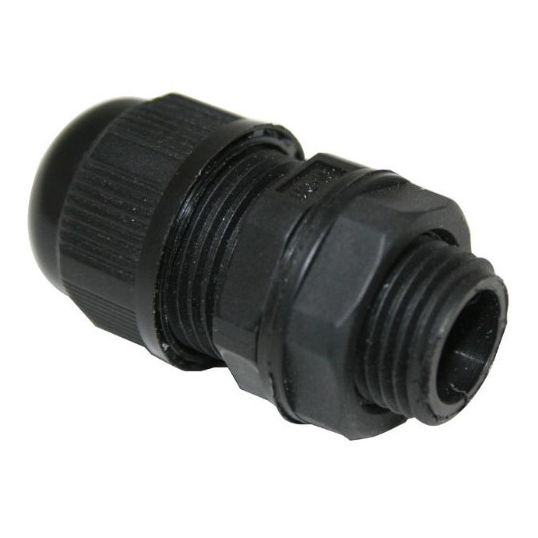

Cabac Cable Gland General Purpose Glass Reinforcing Polyamide 6 M25 9-18mm IP68

chevron-left
loader
Loading...

Description

chevron-down
The CABAC premium range of nylon metric glands are exceptional quality and designed to suit a variety of applications and conditions. These glands are manufactured from halogen free, PA 66 nylon with built-in strain relief blades to protect the cable. The range is water resistant and UV stabilised so that it can withstand extended exposure to the outdoors. The fluid tight seal works on a camera shutter principle that delivers IP68 rated protection to 5 bar pressure. Other features include excellent chemical resistance and a long metric thread to suit Australian requirements. CABAC makes it easy to have the right gland on hand when you need it. Our premium range of nylon glands clamp to a wide range of cable diameters, so selecting and maintaining stock inventory is simple. Supplied complete with locknut and EPDM rubber washer.

Key Specifications

chevron-down
Barcode (EAN-13)
9318674520160
SKU
CAAGN25
Brand
Cabac
Range Name
Premium Range
Product Type
Cable Glands Non-Metal

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Metric threaded glands made from Polyamide 6.6 with camera shutter cable sealing rated IP68
  • Medium resistance to vegetable oils and Benzol
  • Conforms to Standards DIN VDE 0619, IP68 5 bar
  • Supplied complete with locknut and body seal
  • Max Torque: cap - 8.5 Nm, nut - 7.91 Nm
Standard Pack Size 15
UNSPSC Class 39121400
UOM EA
Vendor Product GN25
Body Material Glass Reinforcing Polyamide
Finish Black
IP Rating IP68
Max. Sheath OD 18 mm
Min. Sheath OD 9 mm
Temperature -40 to 100 deg C
Seal Material Neoprene
Thread Length 15 mm
Thread Size M25
Width Across Flats 32 mm
