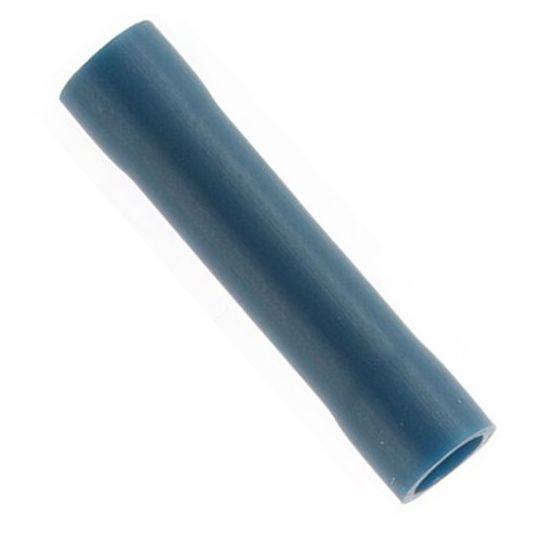

Cabac In-Line Splice Insulated Single Grip 1-2.6mm 1C Blue 50 Pack

Description

In-Line Splice Insulated Single Grip, 1-2.6 mm, 1 Conductors, 600 Volt, 32 Amp, 1.5 kV Min. Breakdown Voltage, 200 Mpa Tensile Strength, 35% Ductile Rating, 99.5% IACS Conductivity, 1.738 micro-Ohm cm Resistivity, Funnel Entry Terminal, Annealed Copper, PVC Insulation, Blue Insulation, Tin Electroplated, -40 to 105 deg C, 50 Pack

Key Specifications

Barcode (EAN-13)	9318674521808
SKU	CAAILS2
Brand	Cabac
Range Name	Pre-Insulated Terminals
Product Type	Splice & Bullet Connectors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Unique funnel entry that speeds wire termination - increasing reliability High quality product - meets international standards
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	ILS2
Conductive Material	Annealed Copper
Conductivity	99.5% IACS
Conductor Size	1-2.6mm
Current Rating	32 Amp
Ductile Rating	35%
Finish	Tin Electroplated
Insulation Colour	Blue
Insulation Material	PVC
Min. Breakdown Voltage	1.5 kV
Pack Size	50 Pack
Number of Conductors	1
Resistivity	1.738 micro-Ohm/cm
Temperature	-40 to 105 deg C
Tensile Strength	200 MPa
Terminal Type	Funnel Entry
Voltage Rating	600 Volt
