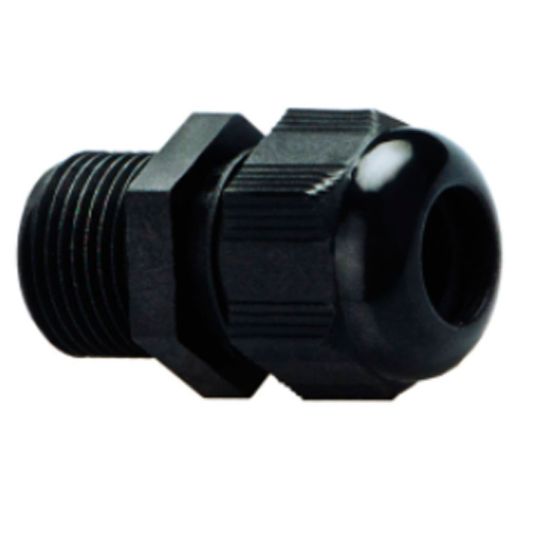

ABB Cable Gland General Purpose M25 13-18mm Nylon PA6 Black IP66/68

$ABB\ABB_NCG-MXXXB.jpg$

Description

Cable Gland General Purpose, M25, 10 mm Thread Length, 13 mm Min. Sheath OD, 18 mm Max. Sheath OD, IP66/68, Nylon PA6 Body, Chloroprene Seal, Black, -20 to 100 deg C

Key Specifications

Barcode (EAN-13)	9318674363217
SKU	CAANCG-M253B-GN
Brand	ABB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Low-profile nylon cable gland for cable entry and sealing in general-purpose, OEM, and industrial applications Wide clamping range suitable for non-armoured, portable, and tray cables Halogen free nylon (PA6) construction offers excellent corrosion resistance and durability Temperature rated from -20 deg C to 100 deg C (normal) and -30 deg C to 150 deg C (short term) IP66 and IP68 ingress protection ensures reliable performance in demanding environments Available in black, grey, and light grey colours
Standard Pack Size	20
UNSPSC Class	39121400
UOM	EA
Vendor Product	NCG-M253B-GN
Body Material	Nylon
Finish	Black
IP Rating	IP66/68
Min. Sheath OD	13 mm
Max. Sheath OD	18 mm
Temperature	-20 to 100 deg C
Thread Length	10 mm
Seal Material	Chloroprene
Thread Size	M25
