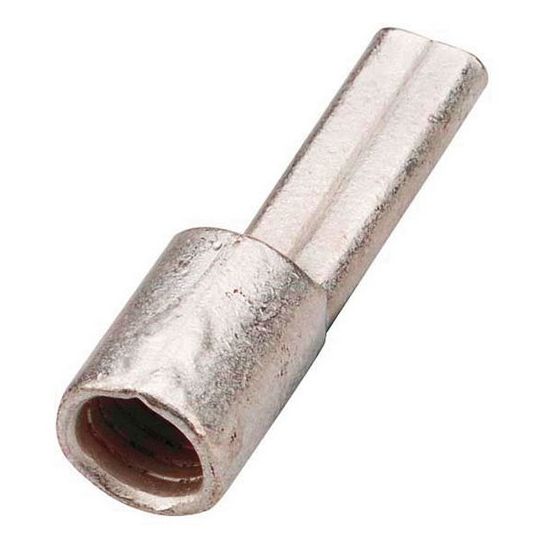

Cabac Pin Connector Un-Insulated Single Grip 25mm
Loading...
Description
Pin Connector Un-Insulated Single Grip, 25 mm, 11.5 mm Barrel Length, 7.4 mm Barrel Inside Diameter, 13.2 mm Pin Length, 31 mm Overall Length, 7.5 mm Width, 3.5 mm Thickness
Key Specifications
| Barcode (EAN-13) |
9318674702726
|
|---|---|
| SKU |
CAAPCU25
|
| Brand |
Cabac
|
| Product Type |
Blade & Pin Terminals
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | PCU25 |
| Barrel Length | 11.5 mm |
| Barrel Inside Diameter | 7.4 mm |
| Conductor Size | 25mm |
| Pin Length | 13.2 mm |
| Overall Length | 31 mm |
| Thickness | 3.5 mm |
| Width | 7.5 mm |
