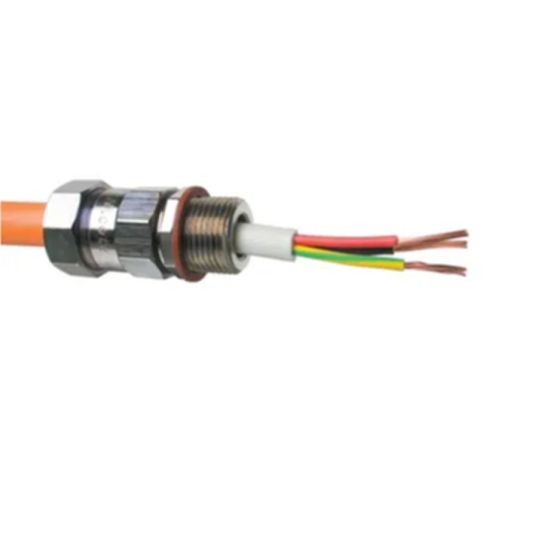

ABB Nicote General Purpose Cable Gland For Steel Wired Armoured Cable 19.6-22.5 M25 IP68

$ABB\ABB_WGN254.jpg$

Description

Cable Gland Metal Armoured General Purpose, M25, 14 mm Thread Length, 1.5 mm, 19.6 mm Min. Sheath OD, 22.5 mm Max. Sheath OD, 16.25 mm Max. Bedding OD, 0.9 mm Min. Armour Wire, 1.25 mm Max. Armour Wire, For Use With Steel Wired Armoured Cables, 36.4 mm Width Across Corners, 40 mm Protrusion Length, IP68, Brass Body, Nickel Plated

Key Specifications

Barcode (EAN-13)	9318674370031
SKU	CAAWGN254
Brand	ABB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	WGN254
Finish	Nickel Plated
Body Material	Brass
IP Rating	IP68
For Use With	Steel Wired Armoured Cables
Max. Armour Wire	1.25 mm
Max. Bedding OD	16.25 mm
Max. Sheath OD	22.5 mm
Min. Armour Wire	0.9 mm
Min. Sheath OD	19.6 mm
Protrusion Length	40 mm
Thread Length	14 mm
Thread Pitch	1.5 mm
Thread Size	M25
Width Across Corners	36.4 mm
