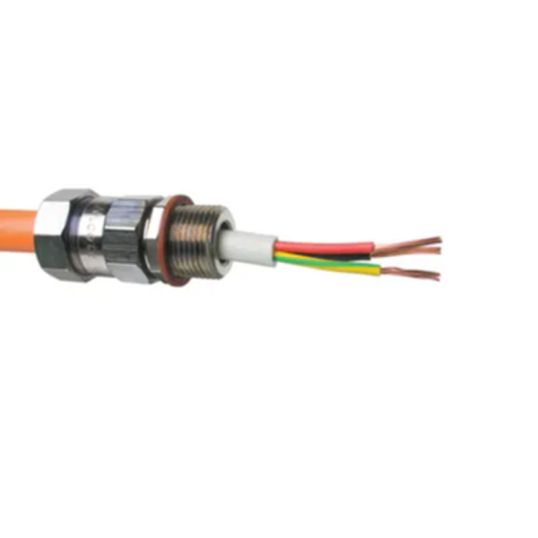

ABB Nicote Cable Gland Metal 53.1-55.5mm IP66/68 For SWA Cable

Description

Cable Gland, M50 x 1.5 mm, 15 mm Thread Length, 44.45 mm Max. Bedding OD, 2 mm Min. Armour Wire, 2.5 mm Max. Armour Wire, For Use With: Steel Wired Armoured Cable, 86.5 mm Width Across Corners, 73 mm Protrusion Length, IP66/IP68, Nickel Plated Brass Components Body

Key Specifications

Barcode (EAN-13)	9318674370130
SKU	CAAWGN505
Brand	ABB
Product Type	Cable Glands Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose cable gland for steel wired armoured cable Provides armour clamp and seal on outer sheath Indoor and outdoor use Nickel plated brass components
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	WGN505
Body Material	Nickel Plated Brass
IP Rating	IP66/68
For Use With	Steel Wired Armoured Cable
Max. Armour Wire	2.5 mm
Max. Bedding OD	44.45 mm
Min. Armour Wire	2 mm
Protrusion Length	73 mm
Thread Length	15 mm
Thread Size	M50 x 1.5 mm
Width Across Corners	86.5 mm
