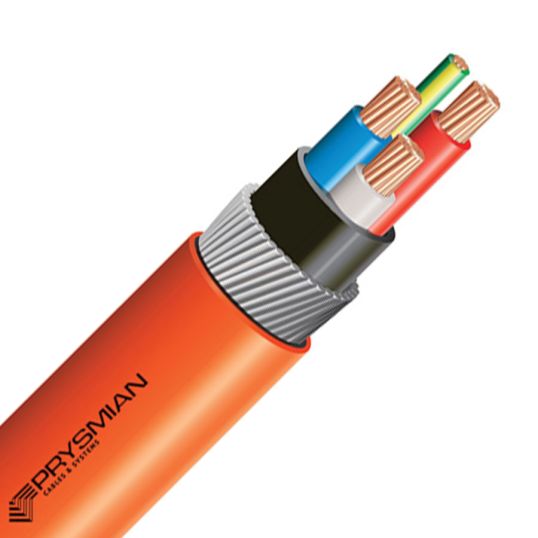

Circular Armoured 3C+E 16mm PVC/SWA/PVC Orange 0.6/1kV

Circular Power Cable, Armoured, 3 Core & Earth, 16 sq-mm, Plain Annealed Copper, 0.6/1 kV, 7/1.7 mm Strands, 5.1 mm Nominal Diameter, 6 sq-mm Earth Conductor, 19.4 mm Bedding Diameter, 22.6 mm Diameter Over Armour, 26.5 mm Overall Diameter, 320 mm Bend Radius, 1 mm Insulation Thickness, Conductor Resistanc: DC: 1.15 Ohm/km, Steel Wire Armour, V-90 PVC Insulation, 5V-90 PVC Sheath, Red White Blue Green/Yellow Cores, Orange Sheath, 75 deg C, AS/NZS 5000.1
