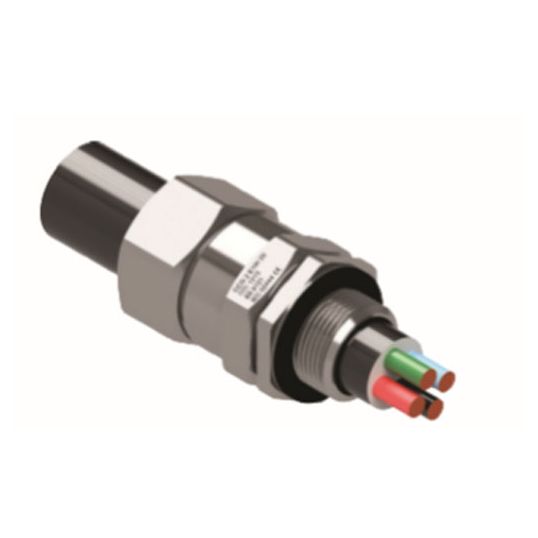

CCG Cable Gland E1W Dual Seal M25 20.5-26.5mm 316/316L Stainless Steel/Aluminium/Nickel Plated Brass

$CCG\CCG_Cables_518.jpg$

Description

Cable Gland E1W Dual Seal, M25, 15 mm/19 mm Thread Length, 1.5 mm, 20.5 mm Min. Sheath OD, 26.5 mm Max. Sheath OD, 1.25 mm Min. Armour Wire, 1.6 mm Max. Armour Wire, For Use With SWA and Aluminium Armoured Cables, 35 mm Width Across Flats, 39 mm Width Across Corners, 50 Nm Torque Rating, IP65/66/68, 316/316L Stainless Steel/Aluminium/Brass Body, Thermoset Elastomer/Silicone Seal, Nickel Plated, -65 to 120 deg C, 65 mm Overall Length

Key Specifications

SKU	CCG051802
Brand	CCG

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For indoor and outdoor use Two piece handling, no loose parts Freely rotating captive cone and inspectable cone ring, providing an armour clamp and earth bond without twisting the armour wire Patented disconnect system for armour clamp inspection. Factory fitted captive elastomeric inner seal for Built-in Safety. Seals on both the inner and outer sheath of the cable to IP65/66/68 Precision manufactured from high quality brass (nickel plated), available in aluminium or stainless steel 316/316L on request Complete with thread sealing gasket and with a heavy duty locknut
Standard Pack Size	10
UNSPSC Class	39121400
UOM	EA
Vendor Product	051802
Finish	Nickel Plated
Body Material	316-316L Stainless Steel/Aluminium/Brass
IP Rating	IP65/66/68
For Use With	SWA and Aluminium Armoured Cables
Max. Armour Wire	1.6 mm
Max. Sheath OD	26.5 mm
Min. Armour Wire	1.25 mm
Min. Sheath OD	20.5 mm
Overall Length	65 mm
Temperature	-65 to 120 deg C
Seal Material	Thermoset Elastomer/Silicone
Thread Length	15-19 mm
Thread Pitch	1.5 mm
Thread Size	M25
Torque Rating	50 Nm
Width Across Flats	35 mm
Width Across Corners	39 mm
