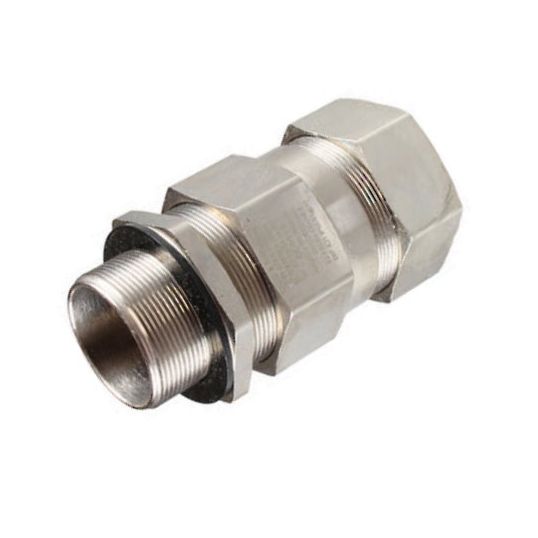

CCG Hazardous Area Cable Gland Armoured 8-13.5mm M20 IP66/68

$CCG\CCG_E1EX.jpg$

Description

Hazardous Area Cable Gland Armoured, M20, 15 mm Thread Length, 1.5 mm, 8 mm Min. Sheath OD, 13.5 mm Max. Sheath OD, 8.5 mm Max. Bedding OD, 0.2 mm Min. Armour Wire, 0.9 mm Max. Armour Wire, Ex db IIC, Ex eb IIC, Ex tb IIIC, Ex nR IIC, 24 mm Width Across Flats, 27 mm Width Across Corners, For Use With Steel and Aluminium Armoured Cables, 21 Nm Torque Rating, IP66/68, Brass Body, Thermoplastic Elastomer Seal, Nickel Plated, -20 to 95 deg C, 75 mm Overall Length

Key Specifications

SKU	CCG052300
Brand	CCG
Range Name	Type E1EX
Product Type	Cable Glands Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For indoor, outdoor, group II, III, zone 1, 2, 21 and 22 hazardous areas Two part handling, no loose parts Freely rotating captive cone and inspectable cone ring provides an armour clamp and earth bond on steel wire and aluminium armour Patented disconnect system allows for inspection of armour clamp and inner seal after assembly With a patented Variable Deluge Seal as standard Factory fitted with a specially formulated elastomeric seal for Built-in Safety, seals on the inner and outer sheath of the cable to IP65/66/68 Precision manufactured from high quality brass
Standard Pack Size	10
UNSPSC Class	39121400
UOM	EA
Vendor Product	052300
Body Material	Brass
Finish	Nickel Plated
For Use With	Steel and Aluminium Armoured Cables
Hazardous Area Rating	Ex db IIC Ex eb IIC Ex tb IIIC Ex nR IIC
IP Rating	IP66/68
Max. Bedding OD	8.5 mm
Max. Sheath OD	13.5 mm
Overall Length	75 mm
Min. Sheath OD	8 mm
Min. Armour Wire	0.2 mm
Max. Armour Wire	0.9 mm
Thread Pitch	1.5 mm
Seal Material	Thermoplastic Elastomer
Temperature	-20 to 95 deg C
Thread Size	M20
Torque Rating	21 Nm
Width Across Corners	27 mm
Width Across Flats	24 mm
Thread Length	15 mm
