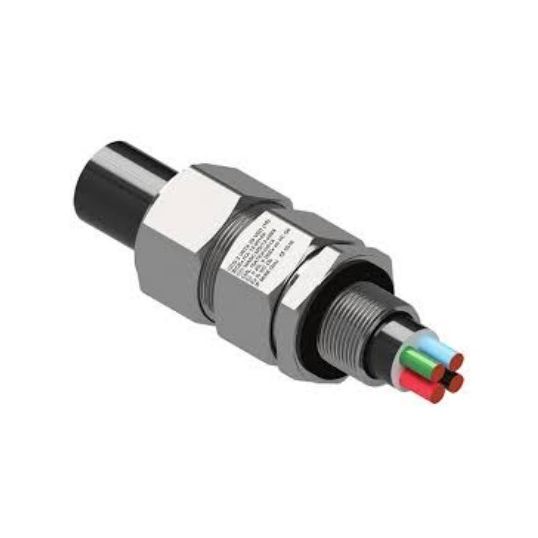

CCG Cable Gland EMC VSD Screened Cable M50 40-46mm IP66/68

Description

Cable Gland EMC VSD Screened, M50, 17 mm Thread Length, 1.5 mm, 40 mm Min. Sheath OD, 46 mm Max. Sheath OD, 65 mm Width Across Flats, 73 mm Width Across Corners, 62.7 Nm Torque Rating, IP66/68, Brass Body, Thermoplastic Elastomer Seal, Nickel Plated, -20 to 95 deg C, 102 mm Length

Key Specifications

SKU	CCG053105
Brand	CCG
Range Name	VariTex
Product Type	Cable Glands EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Two piece handling, no loose parts Independent tightening of coil induces an inspectable positive contact on copper tape Factory fitted captive elastomeric inner seal for Built-in Safety Seals on the outer sheath of the cable to IP66/68 Precision manufactured from high quality brass Complete with a thread sealing gasket and heavy duty locknut For indoor, outdoor, group II, III, zone 1, 2, 21 and 22 hazardous areas
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	053105
Body Material	Brass
Finish	Nickel Plated
IP Rating	IP66/68
Max. Sheath OD	46 mm
Min. Sheath OD	40 mm
Seal Material	Thermoplastic Elastomer
Temperature	-20 to 95 deg C
Thread Length	17 mm
Thread Pitch	1.5 mm
Torque Rating	62.7 Nm
Thread Size	M50
Width Across Corners	73 mm
Width Across Flats	65 mm
