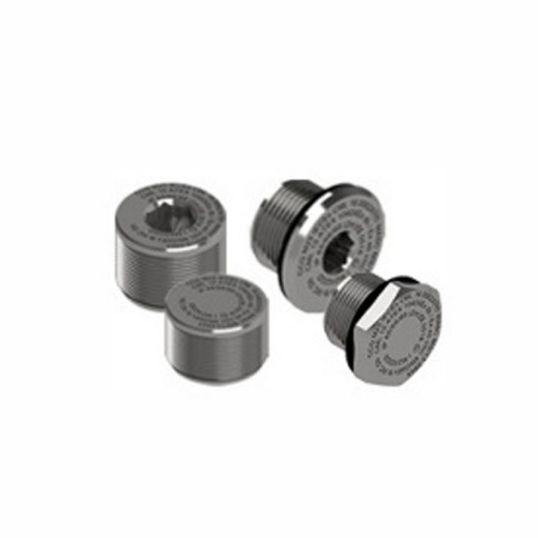

CCG Cable Gland Stopping Plug 1/2 in Nickel Plated Brass

$CCG\CCG_PDN012E.JPG$

Description

Cable Gland Stopping Plug, 1/2 in Cable Gland Size, 15 mm Thread Length, For Use With All General Industrial and Hazardous Area Applications, Class I/II/III Div. 1, 2, Class I/II/III Zone 1 and Zone 21, IP66/67/68, Brass Body, HDPE/Nylon 66/PTFE Gasket, Nickel Plated, -60 to 95 deg C/-60 to 100 deg C/60 to 160 deg C, 18 mm Overall Length

Key Specifications

SKU	CCGPDN012E
Brand	CCG

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Used to blank off threaded entry holes Hexagon Head and Dome Head Plugs with metric threads are supplied with sealing gaskets Stopper plugs are available in standard and reversed (security) forms. (Tightened from inside the enclosure)
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	PDN012E
Body Material	Brass
Cable Gland Size	1/2 inch
Finish	Nickel Plated
IP Rating	IP66/67/68
Gasket Material	HDPE/Nylon 66/PTFE
Hazardous Area Rating	Class I/II/III Div. 1 2 Class I/II/III Zone 1 and Zone 21
For Use With	All General Industrial and Hazardous Area Applications
Overall Length	18 mm
Temperature	-60 to 95 deg C/-60 to 100 deg C/60 to 160 deg C
Thread Length	15 mm
