Certech U/FTP Network Cable Cat6A 4 Pair 23AWG Gel Filled Polyethylene/LDPE Black 305M

chevron-left
loader
Loading...

Description

chevron-down

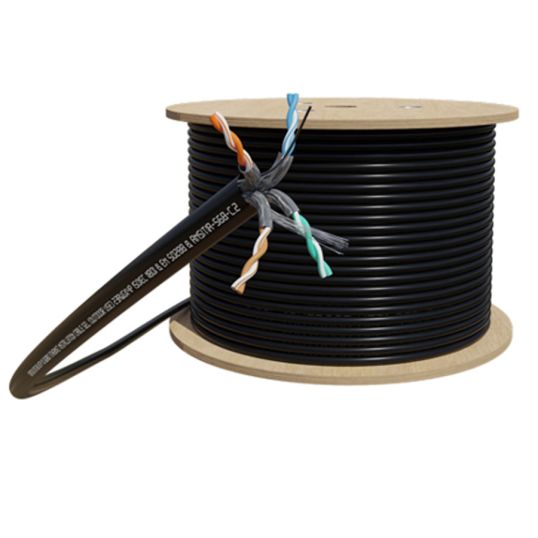

The CERTECH 305 mtr CAT 6A U/FTP external cable is a high-performance, shielded network cable designed for outdoor and underground use. The cable consists of 4 x copper conductor twisted pairs separated by a pair divider, a PE jacket and a dry core layer. Designed with a strength member for improved pulling tension, an overall foil shield and drain wire for earth continuity. With CAT 6A performance, this cable guarantees data transmission speeds of up to 10 gigabits per second (10 Gbps). Wrapped in a PE sheath and containing a dry core layer, this cable is protected from both UV rays and the ingress of water, making it an ideal choice for challenging outdoor installations.

Key Specifications

chevron-down
Barcode (EAN-13)
0
SKU
CERNCC6ASLDGEL
Brand
Certech

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 305 mtr CAT 6 Black U/FTP External Solid Cable Roll 500 MHz
  • 100% Bare Copper Cable
  • 23 AWG x 4P
  • Individual pair foil shield
  • Internal drain wire
  • Integrated pair separator
Standard Pack Size 1
UNSPSC Class 26121600
UOM EA
Vendor Product NCC6ASLDGEL
Bend Radius 8 x OD/4 x OD
Conductor Diameter 0.56 mm
Cable Type Cat 6A U/FTP
Conductor Material Bare copper
Conductor Resistance 9.38 Ohm/100m
Conductor Size 23 AWG
Elongation >=300- >=350
Frequency Bandwidth 500 MHz
Insulation Material Foam Polyethylene
Outside Diameter 7.4 mm
Pair Count 4 Pair
Screen Material Aluminium
Sheath Colour Black
Sheath Material LDPE
Sheath Thickness 0.55 mm +/-0.05 mm
Stranding Solid
Temperature 40 to 75 deg C
