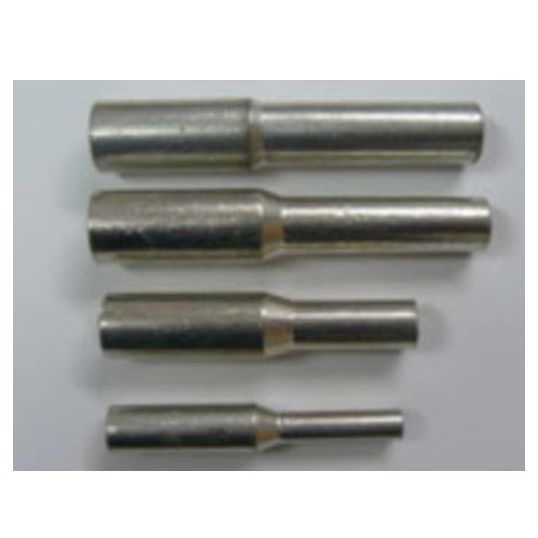

CJS Crimp Link Reducing Copper 240mm 150mm 98mm OAL

Description

Crimp Links, Reducing, Copper, Conductor Size from 240 mm to 150 mm, Inside Diameter from 21.5 mm to 16.5 mm, Outside Diameter from 28 mm to 22 mm, 98 mm Overall Length, Copper Body

Key Specifications

SKU	CJS-CRLINK-240/150
Brand	CJS
Range Name	Reducing Links Copper
Product Type	Links Reducing Type

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The CRL links are a barrier type connector, they can be used in any situation where an impermeable barrier to oils or water is required Also used where two different size cables are used Suitable for LV and HV applications Do not crimp close to the centre barrier or the link may break
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CJS-CRLINK-240/150
Body Material	Copper
From Conductor Size	240 mm
From Inside Diameter	21.5 mm
From Outside Diameter	28 mm
Overall Length	98 mm
To Conductor Size	150 mm
To Inside Diameter	16.5 mm
To Outside Diameter	22 mm
