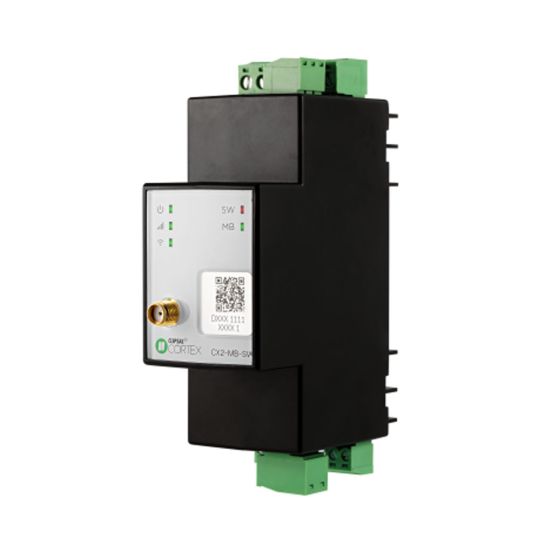

Clipsal Cortex CX2-MB-SW Energy Meter Only.This Meter also has 1 x Dry Contact and 1 Modbus RTU port. Works on 1 phase
Loading...
Description
Advanced Solar & Battery Energy Meter 1 Dry Contact Inputs 1 Modbus RTU Input 1-3 phase plus neutral operating grid voltage 50-280V AC operating grid frequency 45 to 65 Hz Power consumption 1.2W (Supplied by P1) <0.5% - Class 1 Active Energy: <1% Class 1 (IEC 62053-21) Reactive Energy: <2% Class 2 (IEC 62053-23) 4G 3GPenta Band LTE AS/NZS 60950.1:2015 Emissions: AS/NZS CISPR 22 (2009+Amt1 2010) Immunity: CISPR 24: 2010 CISPR 32:2015 AS/NZS 2772 Energy Monitoring Software Solar Fleet Management Software
Key Specifications
| SKU |
CLCCX2-MB-SW-METER
|
|---|---|
| Brand |
Clipsal Cortex
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 5 |
|---|---|
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | CX2-MB-SW-METER |
| Product Type | simple |
