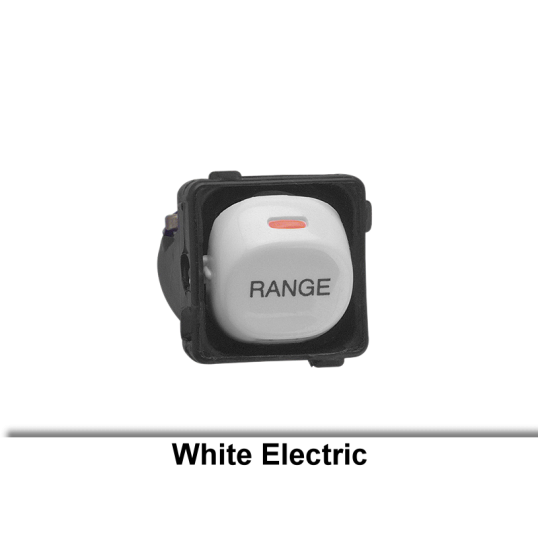

Clipsal Switch Mechanism Labelled Rocker 35A 250V 1 Pole 2 Way RANGE White

chevron-left
loader
Loading...

Description

chevron-down
Switch Mechanism Labelled, 250 Volt Switch, 35 Amp, For Use With 30 Series Plate Apertures, 1 Pole, 2 Way, RANGE, Rocker Switch Control, Screw Terminal, Clip-In Mounting, Plastic, White, Glossy

Key Specifications

chevron-down
Barcode (EAN-13)
9311554288099
SKU
CLI30M35RWE
Brand
Clipsal
Range Name
30 Series
Product Type
Switch Mechanisms

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Terminal bores of 4.1 mm diameter accommodate 4 x 1.5 sq-mm or 3 x 2.5 sq-mm cable
  • M100 motor rating
  • Body fits 22 mm diameter hole
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product 30M35R-WE
Control Type Rocker Switch
Colour White
Current 35 Amp
Finish Gloss
For Use With 30 Series Plate Apertures
Legend RANGE
Material Plastic
Mounting Method Clip-In
Number Of Poles 1 Pole
Number Of Ways 2
Terminal Type Screw
