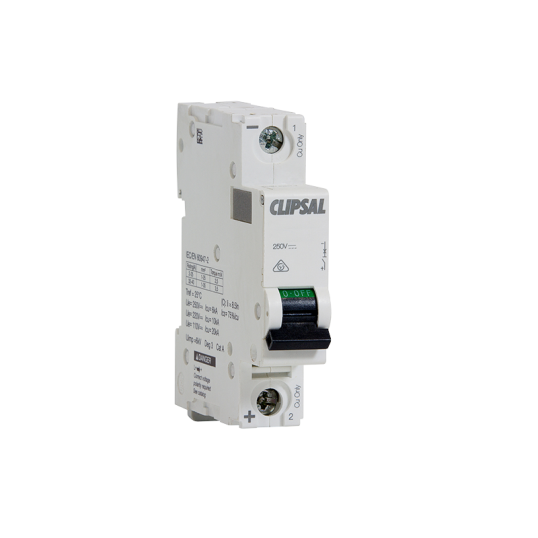

Clipsal Miniature Circuit Breaker For DC C Curve 1Module 6kA 250V 1P 18mm DIN Rail

Description

Miniature Circuit Breaker For DC C Curve, 250 Volt, 10 Amp, 6 kA Interrupt Capacity, 1 Modules, 18mm Module Width, 1 Poles, C Curve Trip Characteristic, Screw Terminal, 3000 Cycles, 1-16 mm Flexible, 1-25mm Rigid Cable Size, DIN Rail,-40 to 85 deg C, 81mm Height x 18mm Width x 78.5mm Depth

Key Specifications

Barcode (EAN-13)	9318795005850
SKU	CLI4CB110/6DC
Brand	Clipsal
Range Name	Max 4
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	4CB110/6DC-NLA
Cable Size	1-16 sq-mm Flexible / 1-25sq-mm Rigid
Current	10 Amp
Depth	78.5 mm
Electrical Life	3000 Cycles
Height	81 mm
Interrupt Capacity	6 kA
Modules	1 Module 18mm
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Temperature	-40 to 85 deg C
Terminal Type	Screw
Voltage	250 Volt
Width	18 mm
