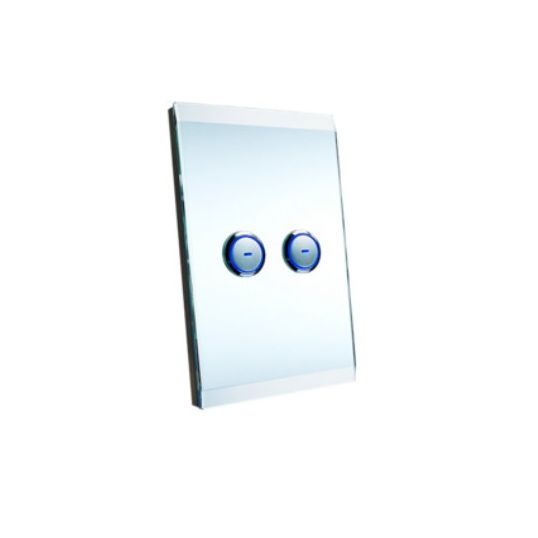

Clipsal C-Bus Saturn A Series Push Button Wall Switch 2 Gang Glass Fascia Saturn Black Key Input Unit Learn Enabled

chevron-left
loader
Loading...

Description

chevron-down
Switch Flush Mounting Pushbutton Glass Fascia Programmable, 15-36 Volt DC, 22 mA, Number of Gangs: 2, Control Type: Push-Button, Mounting Centres: 84mm, Mounting Method: Wall Box, Connection Type: Terminal Block-0.2-1.3 mm, Vertical Orientation, Material: Glass, Plastic, Saturn Black, Temperature: 0 to 45 deg C, 75mm Width, 116mm Height, 28mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
9311554623708
SKU
CLI5082NL-680
Brand
Clipsal
Range Name
C-Bus Saturn Series
Product Type
Switches Standard

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Impact-resistant glass fascia
  • Programmable as ON/OFF toggle, dimmer, timer, scene control and custom functions
  • Selectable blue and orange LED indicator on each button configured through C-Bus Toolkit software
  • LED button indicators provide illumination and status feedback
  • Night light feature
  • Fallback level option to dim indicators at a set time after the last button press
  • Mounted using standard mounting accessories
  • Programmed via Learn mode or the C-Bus Toolkit software
  • Draws 22mA from the C-Bus network
  • C-Bus Learn Enabled
Standard Pack Size 1
UNSPSC Class 39121800
UOM EA
Vendor Product 5082NL-680
Colour Black
Control Type Button
Current 22 mA
Connection Type Terminal Block-0.2-1.3 sq-mm
Depth 28mm
Height 116mm
Mounting Centres 84mm
Material Glass/Plastic
Mounting Method Wall Box
Number Of Gangs 2 Gang
Orientation Vertical
Voltage 15-36 Volt DC
Width 75mm
Temperature 0 to 45 deg C
