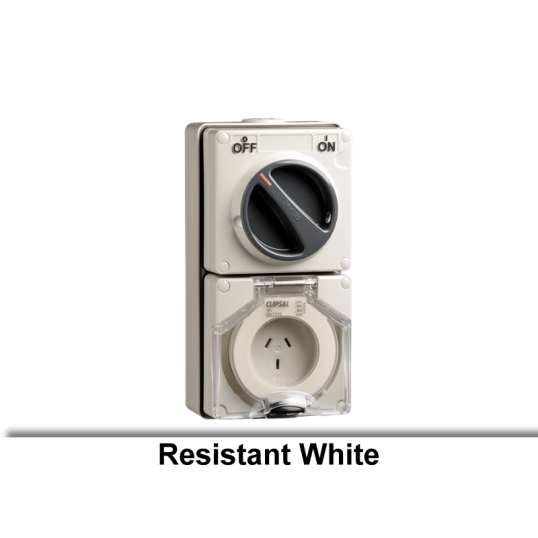

Clipsal 56 Series Switch Socket Outlet Surface Mounting Weatherproof 1Ph 10A 250V 3 Pin Flat Heavy Duty White IP66

$ClipsalNew\C0002345-RW.png$

Description

Switch Socket Outlet Surface Mounting Weatherproof, 1 Phase, 10 Amp, 250 Volt AC, 50 Hz, 1 Pole, 3 Pin Flat, 1P + N + E, Screw, 2 x M20, 1 x M25, Terminal Capacity: 1.5 to 16 mm, Surface Mount, IP66, PC And PET Cover, Phosphor Bronze Pin, Chemical Resistant White, 204 mm Height, 101 mm Width, 108 mm Depth, -25 to 75 deg C, Heavy Duty Mechanism

Key Specifications

Barcode (EAN-13)	9311554339241
SKU	CLI56C310HDRW
Brand	Clipsal
Range Name	56 Series
Product Type	Switch Sockets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	56C310HD-RW
Colour	Chemical Resistant White
Conduit Entry	2 x M20/1 x M25
Connection Type	Screw
Current	10 Amp
Depth	108 mm
Height	204 mm
Frequency	50 Hz
IP Rating	IP66
Mounting Method	Surface
Number Of Poles	1 Pole
Phase	1 Phase
Pin Configuration	3 Pin Flat (1 + Neutral + Earth)
Please Note	Heavy Duty Mechanism
Terminal Capacity	1.5-16 mm
Temperature	-25 to 75 deg C
Voltage	250 Volt
Width	101 mm
