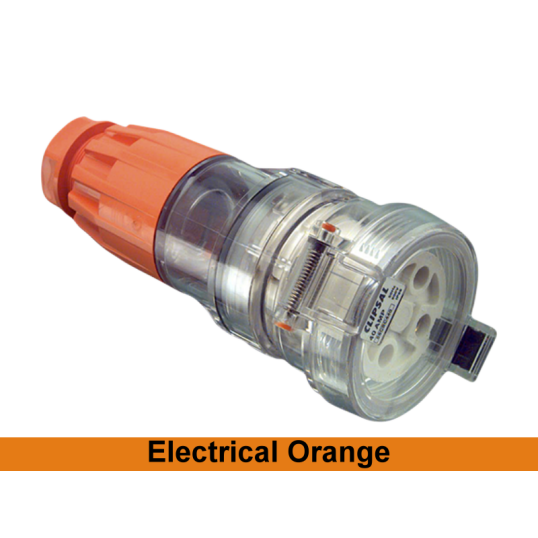

Clipsal 56 Series Extension Socket Appliance Connector Weatherproof 3Ph 40A 4 Pin Round Orange IP66

$ClipsalNew\C00002251-EO.png$

Description

Extension Socket Appliance Connector Weatherproof, 3 Phase, 40 Amp, 500 Volt AC, 4 Pin Round, Orange, IP66, Screw, Terminal Capacity: 2.5 to 25 mm, Cable Gland, M40 Cable Gland, 9-29mm Cable Diameter, Polycarbonate, -25 to 75 deg C, 90 mm Height, 90 mm Width, 180 mm Depth

Key Specifications

Barcode (EAN-13)	9311554235789
SKU	CLI56CSC440
Brand	Clipsal
Range Name	56 Series
Product Type	Extension Sockets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	56CSC440-EO
Cable Entry	Cable Gland
Cable Gland Size	M40
Colour	Orange
Cable Nominal Diameter	9-29 mm
Connection Type	Screw
Current	40 Amp
Depth	180 mm
Height	90 mm
IP Rating	IP66
Phase	3 Phase
Pin Configuration	4 Pin Round
Temperature	-25 to 75 deg C
Terminal Capacity	2.5 to 25 sq-mm
Voltage	500 Volt
Width	90 mm
