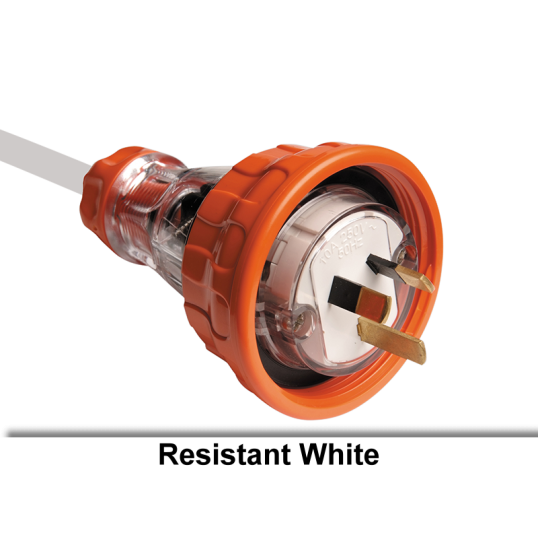

Clipsal Plug Straight Body Weatherproof 1Ph 10A 230V 3 Pin Flat Chemical Resistant White IP66

$ClipsalNew\C0002394-RW.png$

Description

Plug Straight Weatherproof, 230 Volt, 10 Amp, Straight Angle, 1 Phase Phase, 3 Pin Flat, Screw Connection, 0.75-1 sq-mm Terminal Capacity, Cable Gland Cable Entry, IP66, Chemical Resistant White, -25 to 75 deg C, 67 mm Height, 67 mm Width, 112.5 mm Depth

Key Specifications

Barcode (EAN-13)	9311554590376
SKU	CLI56P310RW
Brand	Clipsal
Range Name	56 Series
Product Type	Plugs Straight

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	56P310-RW
Angle	Straight
Cable Entry	Cable Gland
Colour	Chemical Resistant White
Connection Type	Screw
Current	10 Amp
Depth	112.5 mm
Height	67 mm
IP Rating	IP66
Pin Configuration	3 Pin Flat
Phase	1 Phase
Terminal Capacity	0.75-1 sq-mm
Temperature	-25 to 75 deg C
Voltage	230 Volt
Width	67 mm
