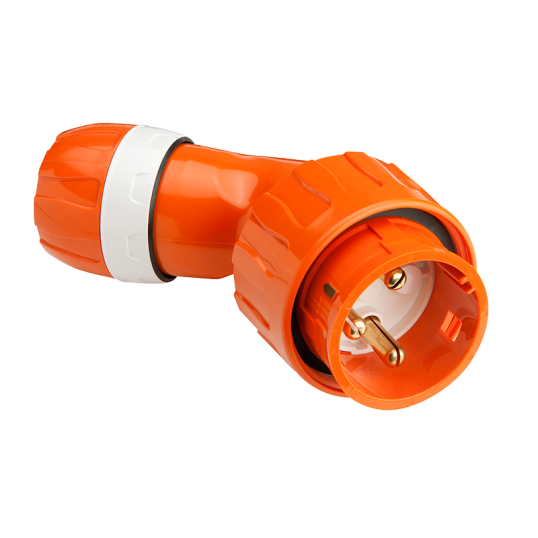

Clipsal 56 Series Plug Angled Body Weatherproof 1Ph 32A 250V 3 Pin Round Chemical Resistant Orange IP66
Loading...
Description
Plug Angled Body Weatherproof, 1 Phase, 32 Amp, 250 Volt AC, 3 Pin Round, Chemical Resistant Orange, IP66, Terminal Capacity: 2.5 to 25 mm, Cable Gland, M40 Cable Gland, PBT, -25 to 75 deg C, 78 mm Height, 130 mm Width, 168 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554237387
|
|---|---|
| SKU |
CLI56PA332RO
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Plugs Angled
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 56PA332-RO |
| Cable Gland Size | M40 |
| Cable Entry | Cable Gland |
| Colour | Chemical Resistant Orange |
| Current | 32 Amp |
| Depth | 168 mm |
| Height | 78 mm |
| IP Rating | IP66 |
| Pin Configuration | 3 Pin Round |
| Phase | 1 Phase |
| Terminal Capacity | 2.5 to 25 sq-mm |
| Temperature | -25 to 75 deg C |
| Voltage | 250 Volt |
| Width | 130 mm |
