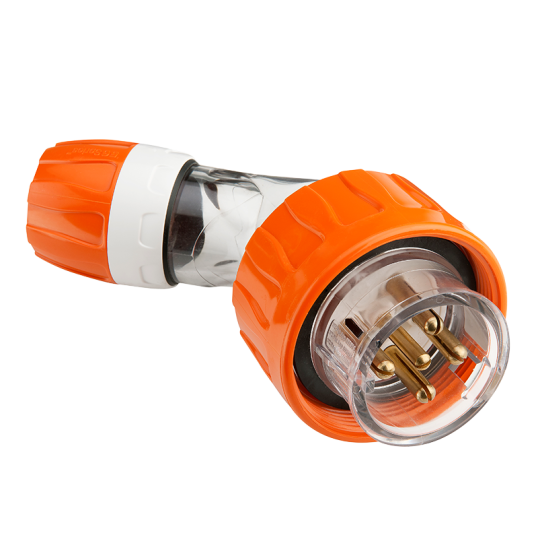

Clipsal Plug Angled Body Weatherproof 3Ph 20A 500V 5 Pin Round Chemical Resistant Orange IP66
Loading...
Description
Plug Angled Body Weatherproof, 500 Volt, 20 Amp AC1, 3 Phase Phase, 5 Pin Round, Screw Connection, 1-6 sq-mm Terminal Capacity, Cable Gland Cable Entry, M25 Cable Gland Size, IP66, Polybutylene Terephthalate, Orange, -25 to 75 deg C, 78 mm Height, 126.5 mm Width, 158 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554237523
|
|---|---|
| SKU |
CLI56PA520RO
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Plugs Angled
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 56PA520-RO |
| Cable Gland Size | M25 |
| Cable Entry | Cable Gland |
| Colour | Orange |
| Connection Type | Screw |
| Depth | 158 mm |
| Height | 78 mm |
| IP Rating | IP66 |
| Material | Polybutylene Terephthalate |
| Pin Configuration | 5 Pin Round |
| Phase | 3 Phase |
| Terminal Capacity | 1-6 sq-mm |
| Temperature | -25 to 75 deg C |
| Voltage | 500 Volt |
| Width | 126.5 mm |
